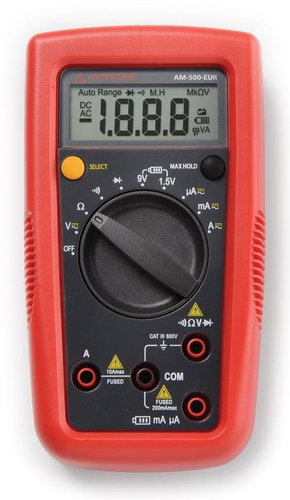

BEHA-AMPROBE Digital Multimeter, AM-500

Multimeter
Code:  GVHTmult01

Don't like the alternatives? Choose from the full product list

BEHA-AMPROBE Digital Multimeter, AM-500 Discontinued

BEHA-AMPROBE Digital Multimeter, AM-500

Specifications

Standard
EN 61010

Direct voltage (DC)

Min. DC voltage
200 mV
Max. DC voltage
600 V
Accuracy ±
0.8 %

Alternating voltage (AC)

Min. AC voltage
1 mV
Max. AC voltage
600 V
Accuracy ±
1 %

Direct current (DC)

Min. DC current
200 µA
Max. DC current
10 A
Accuracy ±
1 %

Alternating current (AC)

Min. AC current
200 µA
Max. AC current
10 A
Accuracy ±
1.2 %

Electrical resistance

Min. resistance
200 ?
Max. resistance
20 M?
Accuracy ±
1.2 %

Dimensions

Height
150 mm
Width
83 mm
Depth
40 mm
Weight
441.3 g
More Specifications
