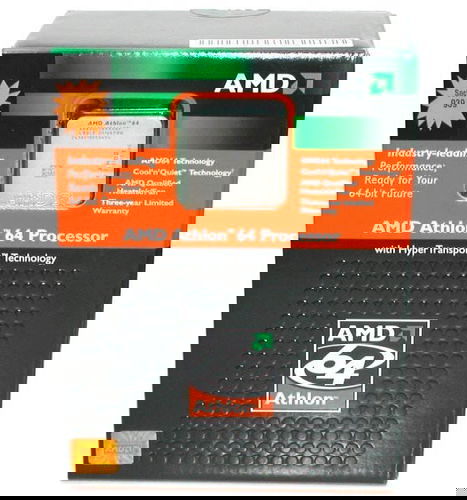

AMD Athlon A64 3700+ 64-bit HT Toledo BOX socket 939
AMD Athlon A64 3700+ 64-bit HT Toledo BOX socket 939
Discontinued
AMD Athlon A64 3700+ 64-bit HT Toledo BOX socket 939
Top processor with a full 64-bit architecture designed for extremely powerful home and work computers.Its architecture is based on the principle Athlon XP, but contains significant changes in the quantity and optimisation, such asincrease in the length of pipeline to 12, increasing the number of instructions processed within one hour bar, extending the width of data between the L1 and L2 cache of 64 bits to 128 bits, or doubling the size of Instruction and Data Translation Look-Aside Bufferů.Another new feature is support for multimedia instructions SSE2.
Working frequency is 2200 MHz processor.The maximum memory throughput guarantees an integrated memory controller with 128-bit data width and supporting DDR memory 400thPhysically may be addressed to incredible 1 TB RAM.This, together with using the new system bus HyperTransport (HT) with a high permeability data, running at up to 1000 MHz frequency, ensures maximum performance.
The processor is produced advanced 0.09 μ m technology, but uses an improved operation SSDOI (the location of silicon directly on dielektriku), which allows working to achieve higher frequencies, while reducing the consumption of the processor.It is equipped with 1024 KB L2 Cache memory.
Install the optimized slot Socket 939thThis is compared to paticím Socket 940 and 754 easier and cheaper, which is positively reflected in the price of basic plates, supports dualchannel memory controller, to 4 DIMM slots and HyperTransport system bus with transmission speeds of up to 1 GHz.But it can not be used for víceprocesorové systems, is intended for uniprocessor computers.The processor is supplied in a Box packages, including certified cooler.
Working frequency:
2200 MHz
Cache:
L1 - 128 kb (64KB data and 64 kilobytes instruction)
U2 - 1024 kb
Slot:
Socket 939
Technology:
The core of Toledo
0.09 μ m
Supported technologies and features:
128-bit integrated memory controller
64-bit instructions
Quite Cool and
NX bit
HyperTransport technology
Working frequency is 2200 MHz processor.The maximum memory throughput guarantees an integrated memory controller with 128-bit data width and supporting DDR memory 400thPhysically may be addressed to incredible 1 TB RAM.This, together with using the new system bus HyperTransport (HT) with a high permeability data, running at up to 1000 MHz frequency, ensures maximum performance.
The processor is produced advanced 0.09 μ m technology, but uses an improved operation SSDOI (the location of silicon directly on dielektriku), which allows working to achieve higher frequencies, while reducing the consumption of the processor.It is equipped with 1024 KB L2 Cache memory.
Install the optimized slot Socket 939thThis is compared to paticím Socket 940 and 754 easier and cheaper, which is positively reflected in the price of basic plates, supports dualchannel memory controller, to 4 DIMM slots and HyperTransport system bus with transmission speeds of up to 1 GHz.But it can not be used for víceprocesorové systems, is intended for uniprocessor computers.The processor is supplied in a Box packages, including certified cooler.
Working frequency:
2200 MHz
Cache:
L1 - 128 kb (64KB data and 64 kilobytes instruction)
U2 - 1024 kb
Slot:
Socket 939
Technology:
The core of Toledo
0.09 μ m
Supported technologies and features:
128-bit integrated memory controller
64-bit instructions
Quite Cool and
NX bit
HyperTransport technology
