ASUS PRIME H810M-A-CSM

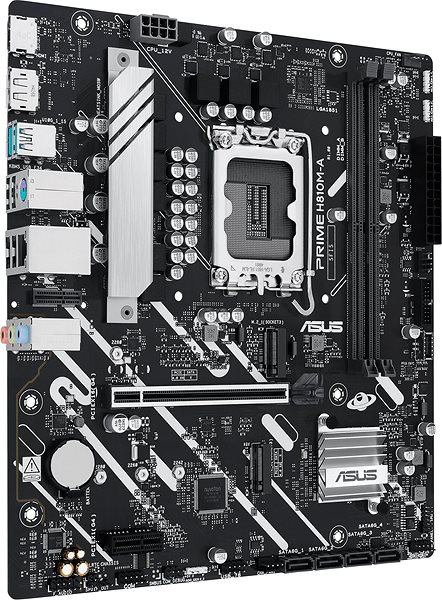

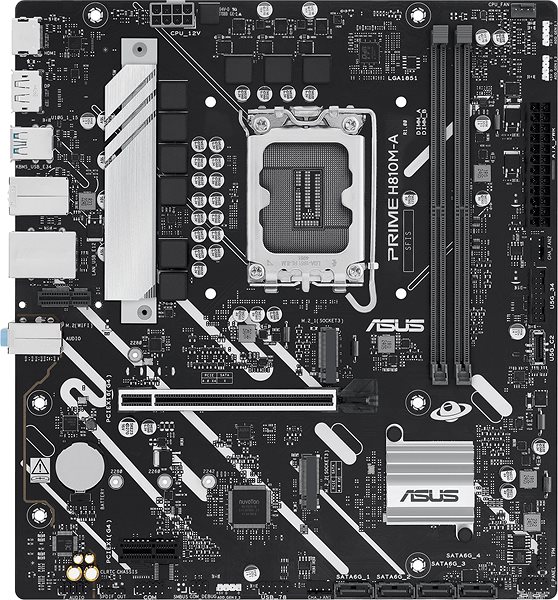

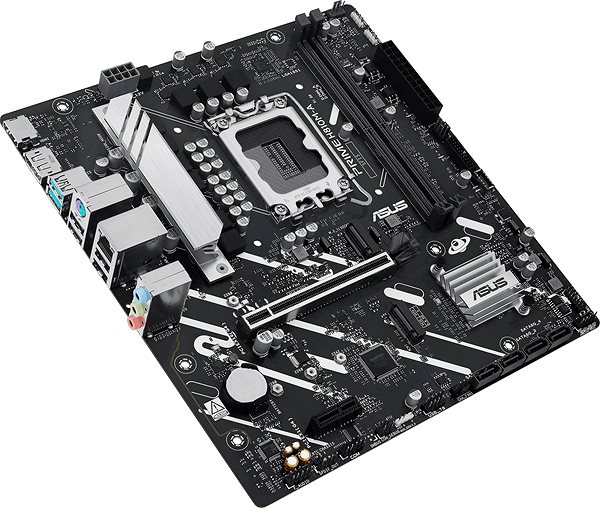

This ASUS motherboard is built with the Intel H810 chipset with the Intel 1851 socket to accommodate the processor. As is usually the case, it is also equipped with a sound card which can handle 8,0 channels. It skilfully combines compact dimensions with a host of connectors for a complete home computer setup. If you want to use this motherboard, you'll need a compatible mATX (Micro ATX) format PC case.
ASUS PRIME H810M-A-CSM Motherboard Key Features
- Intel 1851 socket and the Intel H810 chipset
- ASUS PRIME H810M-A-CSM format: mATX (Micro ATX)
- Integrated audio card for 8,0 channels
- DDR5 RAM type with DIMM design
- The motherboard can accommodate 2 × dual-channel memory modules
ASUS PRIME H810M-A-CSM Motherboard Connectivity
RAM is absolutely crucial, so this ASUS motherboard has a total of 2 RAM slots. You can make use of DDR5 type DIMM RAM. You can attach them in dual-channel mode. This motherboard is compatible with models with a clock speed of up to 6400 MHz.
ASUS PRIME H810M-A-CSM Connectors
The motherboard is designed for graphics cards with a PCI Express 16x slot. The internal interface has a total of 2 popular M.2 connectors. You'll also be pleased to know that it has TPM for improved security.

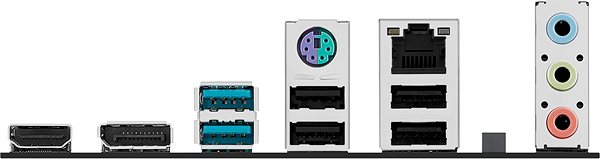

- External interfaces: Jack, PS/2, RJ-45 (LAN) 1Gbps, USB 2.0, USB 3.2 Gen 2, HDMI 2.1 and DisplayPort 1.4
- Internal interfaces: COM header, S/PDIF header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 1 header, PCIe 4.0 x16, PCIe 4.0 x1 and Serial ATA III
- Maximum supported RAM clock speed: 6400 MHz
- Serial ATA III: 4 ×
Specifications
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
