Zalman T3
PC Case - mATX (Micro ATX) and mITX (Mini ITX), 2× 3,5" slot(s), 3× 2,5" slot(s), USB 2.0, USB 3.2 Gen 1 (USB 3.0), Headphones and Microphone, 1x92mm, max. graphics card length: 300mm, without power supply, side panel made of steel
Show full description
Code:
CA069h4
Producer's Website:
Don't like the alternatives? Choose from the full product list
- Reviews 1
- Help and manuals 22
- Specifications
- Photos & Videos 7
- Alternatives 8
- Accessories and suggested products
Zalman T3
Discontinued
Zalman T3

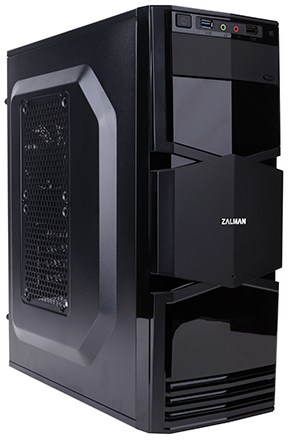

Computer Case Zalman T3 designed for smaller motherboards type Micro ATX and Mini ITX excels in compact dimensions, yet allows storage of high-performance components . Perforated cover the lower part of the front chassis ensures sufficient supply of cold air and an integrated filter prevents dust intake. The housing allows mounting to four fans . The cooling system of Zalman ensures that cold air is sucked in the front and rear of the fan is blown. This makes it effectively reduce the temperature of the interior cabinets and so do not be afraid fitted and a powerful graphics card or processor.
Positions for the resource is placed in the lower housing portion and provided with dust filter and vibration mat . The housing also has a sophisticated cable management system, which further improves the flow of air in the internal parts. Installation of the SSD you can make to special place in the inner side wall , Will therefore left with two more free space for the classic 3.5 "drives in front of the cabinet. Then in the back part may be missing holes for water cooling tubes as well as a front panel containing, besides the standard keys on and restart i USB 2.0 , USB 3.0 and analog connectors for headphones and microphone.
Additional information:
For motherboards:
Micro ATX, Mini ITX
The connectors on the front panel:
1x USB 3.0
1x USB 2.0
1x headphone output
1x microphone
Cooling system:
1x 120 mm in front of the fan
2x 120 mm fan in the side
1x 80 mm at the rear fan (preinstalled)
Other:
Supports graphics cards up to 300 mm length
Specifications
Motherboard form factor
Number of internal 2.5" slots
Max. graphics card length
Usage and size
Internal structure
Motherboard form factor
Number of internal 2.5" slots
Max. graphics card length
External structure
front
3.5mm jack (headphones), 3.5mm jack (microphone), USB 2.0, USB 3.2 Gen 1
Sidewalls
Side panel material
PSU
Power supply
Supported PSU format
Cooling system
Front fan size
Rear fan size
Number of fan positions
Number of mounted ventilators
Backlight
Backlight colour
Material
Wardrobe material
More Specifications
Note:
Specifications can be changed without notice. Images are for illustrative purposes only.
