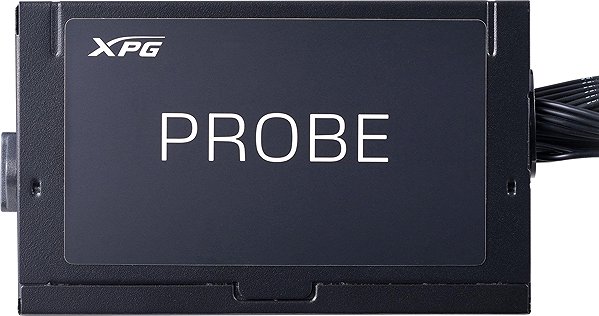

ADATA XPG PROBE 700W
PC Power Supply - 700 W, ATX form factor, 80 PLUS Bronze certification, thermal speed control and power switch, 120 mm fan size, 2× EPS/CPU 4+4pin, 2× PCI Express 8-pin / 6+2-pin, 5× Serial ATA 15-pin, 2× Molex HDD 4-pin connectors, dimensions 150 × 86 × 140 mm (W×H×D)
Show full description
1,149,-
Price Guarantee
Shop faster with pickup at AlzaBox or in-store.
Warranty 36 months
Code:
DUzpr5
Producer's Website:
ADATA XPG PROBE 700W
1,149,-
In stock > 5 pcs
Buy
ADATA XPG PROBE 700W
The PYLON II Bronze PSU delivers 80 PLUS Bronze efficiency, reducing your energy costs while maintaining full performance. Compliance with the Intel ATX 3.1 standard ensures full support for current components with high power demands. It features a quiet and durable FDB fan that provides effective cooling for stable and silent operation. The PC power supply includes eight industrial-grade protections to safeguard your components. With its 80 PLUS Bronze certification and ATX 3.1 standard, the ADATA XPG PYLON II ensures stable performance for both current builds and future upgrades.
700W
Power
ATX
Format
80 PLUS Bronze
Certification
No
Modularity
Key features of the ADATA XPG PROBE 700W PC power supply
- 700W power output
- 80 PLUS Bronze certification
- Complies with Intel ATX 3.1 standards
- Quiet 120mm fan with thermal speed control
- Offers 8 industrial-grade protections
- Standard ATX format
Choosing a power supply
When choosing a suitable PC power supply, the key parameter besides the format is its power output. This indicates the maximum number of Watts the power supply can continuously deliver to the components in your computer. It's a good idea to use an online calculator to determine the optimal power output based on your chosen components.
Stable power and quiet operation
The PYLON II power supply ensures stable and high performance for PC builds and upgrades. The PC power supply is designed according to current Intel ATX 3.1 standards and is equipped with a 12V-2x6 connector, which ensures compatibility with high-performance components. It is designed to meet the evolving needs of modern systems. The PYLON II is equipped with a 135mm FDB fan, ensuring quiet operation and a long lifespan. It keeps the system cool even under heavy load and provides optimal cooling with an emphasis on silent operation.
Package contents
- ADATA XPG PROBE 700W PC power supply
- Mains power cable
- User manual
- 4× Mounting screws
- 1× ATX 24-pin
- 1× ATX 12V 4+4-pin
- 2× PCI-E 6+2-pin
- 2× SATA 15-pin
- 2× Molex 4-pin
80 Plus certification in the European market
The 80 Plus certification was created to objectively evaluate the efficiency of PC power supplies. This gives users a simple and clear way to compare different models. In the European market (where 230V is used), there are six levels of 80 Plus certification with set requirements for PC power supplies. Higher energy efficiency primarily means lower energy consumption.
| PC PSU load | Efficiency at 20% load | Efficiency at 50% load | Efficiency at 100% load |
|---|---|---|---|
| 80 PLUS | 82% | 85% | 82% |
| 80 PLUS Bronze | 85% | 88% | 85% |
| 80 PLUS Silver | 87% | 90% | 87% |
| 80 PLUS Gold | 90% | 92% | 89% |
| 80 PLUS Platinum | 92% | 94% | 90% |
| 80 PLUS Titanium | 94% | 96% | 94% |
Specifications
700 W
ATX
ATX version
Modularity
Power switch, Thermal speed control
Performance and format
Equipment
Power switch, Thermal speed control
Type of protection
Efficiency
80 PLUS Bronze
Connectors
ATX 24pin, CPU 8pin / 4+4pin, Molex 4pin, PCI-E 8pin / 6+2pin, SATA 15pin
Number of EPS/CPU 4+4pin
PCI Express 8pin / 6+2pin
Number of serial ATA 15-pin
Number of molex HDD 4-pin
Cooling system
120 mm
More Specifications
