ASROCK Z790 Steel Legend WiFi

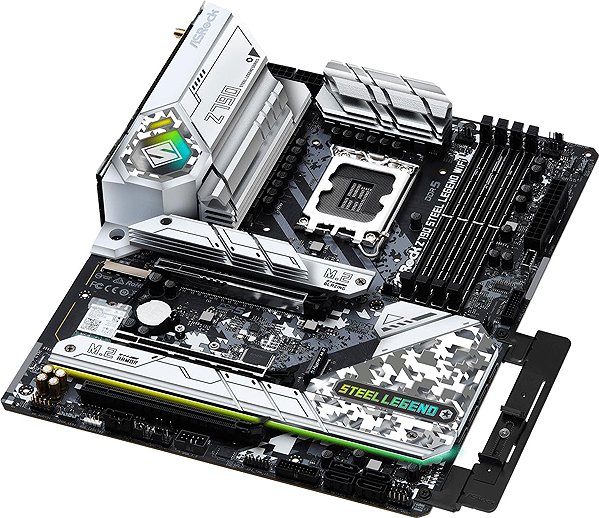

The ASROCK motherboard is built with the Intel Z790 chipset and has the Intel 1700 socket to accommodate the processor. As you would expect,, it has a sound card for 8,0 channels. You will be able to utilise its network connection module with the practical Wi-Fi connection options. It is a large motherboard for extremely powerful setups that employ multiple hardware cards and complex cooling. If you want to choose this motherboard, you will need a compatible ATX format computer case.
ASROCK Z790 Steel Legend WiFi Motherboard Key Features
- Intel 1700 socket and uses Intel Z790 chipset
- ASROCK Z790 Steel Legend WiFi size: ATX
- Integrated sound card for 8,0 channels
- DDR5 computer RAM type with DIMM design
- The motherboard can accommodate 4 × dual-channel memory modules
ASROCK Z790 Steel Legend WiFi Motherboard Connectivity
Computer RAM is indispensable, so this ASROCK motherboard has a total of 4 RAM slots. You can pair it with DDR5 type DIMM RAM. You can connect them in dual-channel mode. The motherboard supports modules with a clock speed of up to 7200 MHz.
ASROCK Z790 Steel Legend WiFi Connectivity
The motherboard is made for 3 graphics cards with PCI Express 16x slots. The internal interface is also equipped a total of 5 popular M.2 connectors. You will also love that it has TPM for improved security, a dazzling RGB LED Header, and Thunderbolt
- The motherboard has a built-in Realtek ALC897 sound card
- External interfaces: Jack, RJ-45 (LAN) 2.5Gbps, S/PDIF , USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2, HDMI 2.1 and DisplayPort 1.4
- Internal interfaces: RGB LED Header, Thunderbolt header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 2x2 header, M.2 PCIe 5.0, PCIe 5.0 x16, PCIe 4.0 x16, eDP header and Serial ATA III
- Maximum supported RAM clock speed: 7200 MHz
- SATA III: 8 ×
Specifications
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
Colour
This product is not an independently functional unit and may require professional installation.
Specifications can be changed without notice. Images are for illustrative purposes only.
