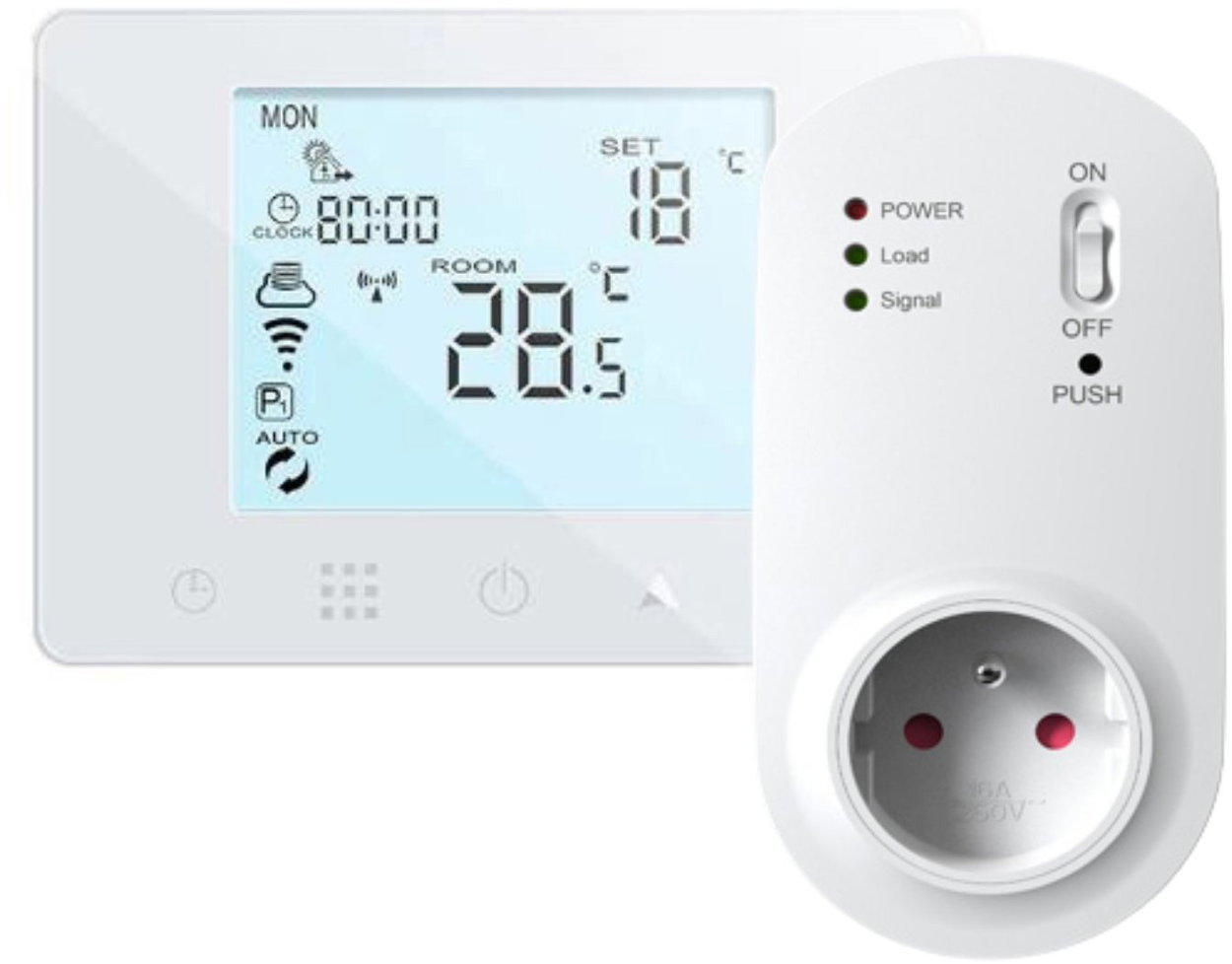

Auraton Orion 230V SET WiFi Wireless Thermostat with Receiver, Switched Socket
The Auraton Orion 230V SET WiFi wireless thermostat is designed to regulate the temperature in both heating and cooling systems in your home. This programmable controller works with appliances such as electric radiators, fans, fan heaters, direct heaters, or electric stoves. The wireless connection to the plug-in receiver makes installation easy, with no need for structural modifications or laying cables. The device measures temperature with a display accuracy of 0.5°C and offers a control range from 0 to 70°C. The system also includes the option for remote control via mobile networks and a WiFi interface.
Key features of the Auraton Orion 230V SET WiFi wireless thermostat with receiver, switched socket
- Weekly programmable working cycle in 5+2, 6+1 or 7-day configurations
- Relay with a load capacity of 16A at 250V
- Receiver plugs directly into a mains socket without any need for cable installation
- Internal memory retains device settings even after a power outage
- Six temperature levels and a separate holiday mode for 1 to 30 days
- Wireless connection uses the 2.4GHz frequency and works with the Tuya Smart app
- Adjustable hysteresis range from 0.5 to 2.5°C
Smart control

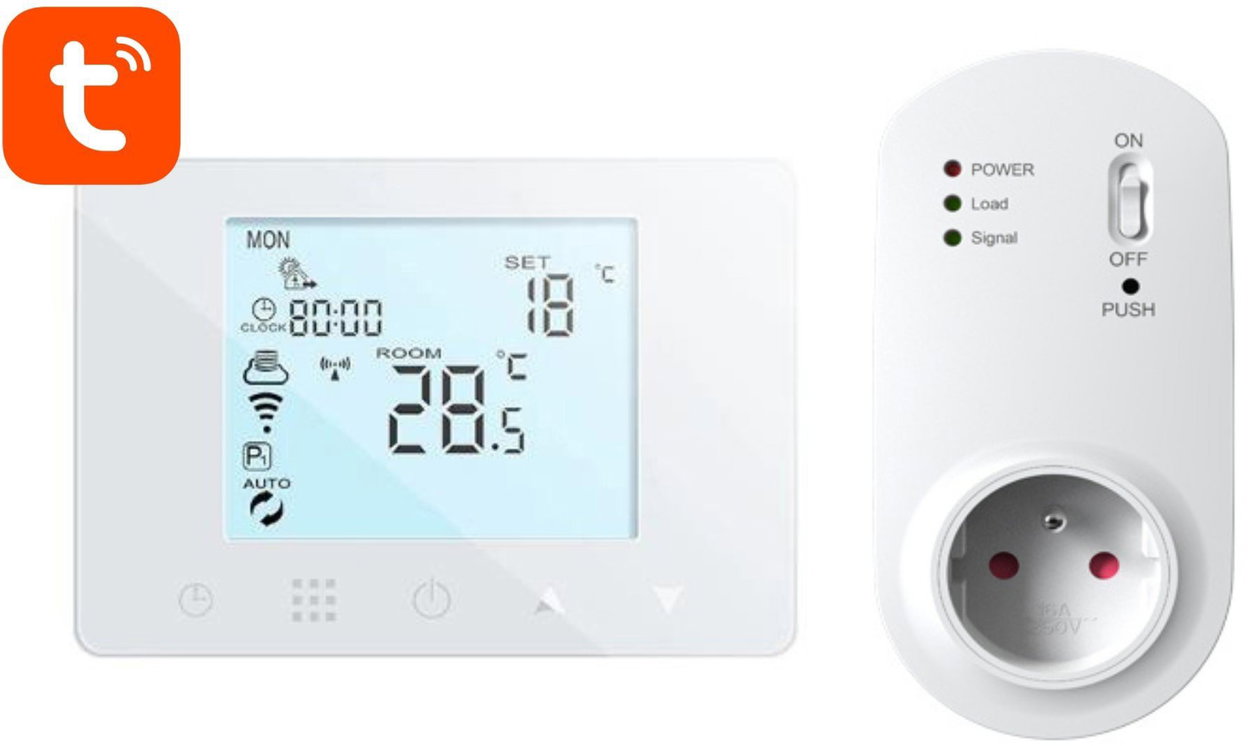

The device communicates via a 2.4GHz WiFi wireless network. Users can adjust the settings through the Tuya Smart or Smart Life mobile apps. Remotely manage your home's temperature using a smartphone with Android or iOS. The system also supports Google Assistant and Amazon Alexa voice assistants.
Weekly scheduling options
The device offers several operating setting options for weekdays and weekends. Weekly programming runs in 5+2, 6+1, or 7-day cycles. Setting six different temperature levels during a single day helps adapt the heating to the residents' daily routine. Users also have access to a holiday mode, which can be set for 1 to 30 days at a temperature of 27°C. The integrated open-window function reacts to a sudden drop in temperature between 5 and 25°C for an adjustable period of 5 to 60 minutes.
Wireless connection and power

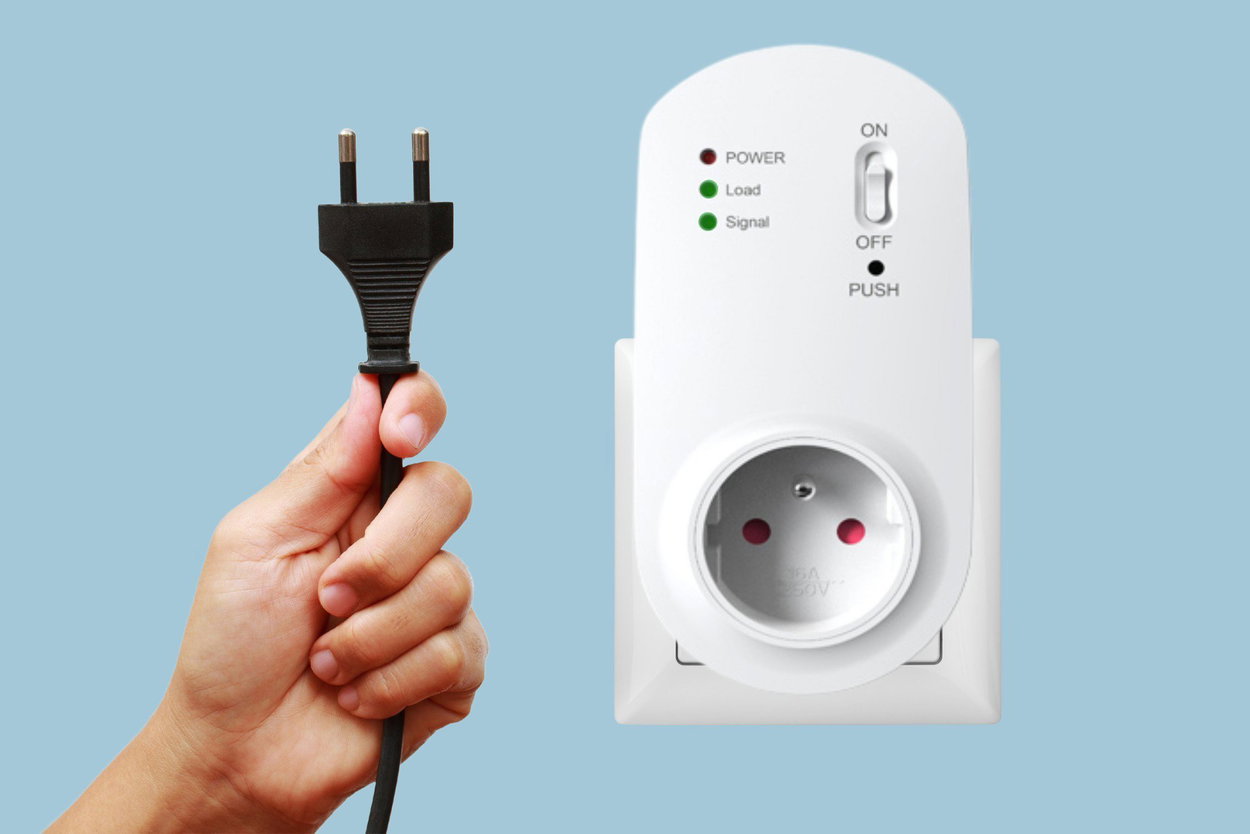

Communication between the transmitter and receiver occurs on the 433.92MHz frequency. The signal range is up to 300m in open spaces and approximately 30m indoors. The transmitter unit is powered by four AAA batteries, with the additional option of connecting via a USB adapter. The receiver plugs directly into a standard 230V mains socket.
Safety features
The construction has an IP20 protection rating and can operate in humidity up to 85% without condensation. Integrated anti-frost protection maintains the temperature between 1 and 10°C. A child lock with a full-lock option prevents unwanted changes to the settings by children. The device retains its on or off status in memory even after a power failure.
Power supply:
230V AC, 50/60Hz or 4× AAA (2× 1.5V) or USB adapter
Dimensions:
90 × 130 × 25mm
Communication frequency:
433.92MHz, WiFi 2.4GHz
Operating range:
Indoors 30m, in open space 300m
Temperature control range:
0–70°C
Maximum relay load:
250V AC, 16A
Protection rating:
IP20
Compatible apps:
Tuya Smart or Smart life
Supported OS:
Android, iOS
Programming options:
5+2, 6+1 or 7 days
