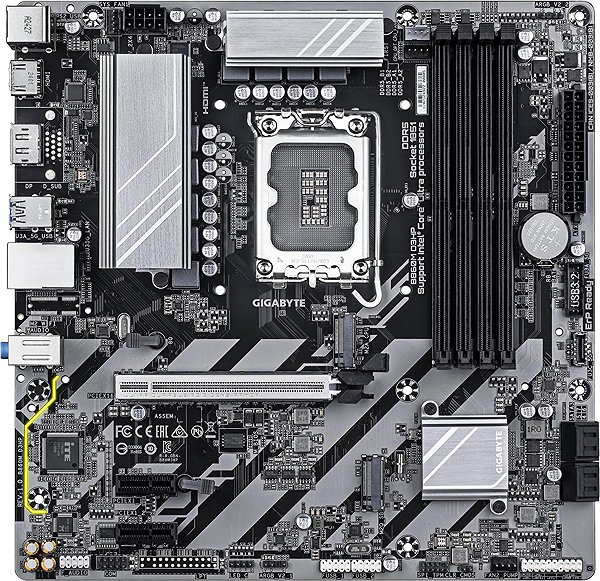

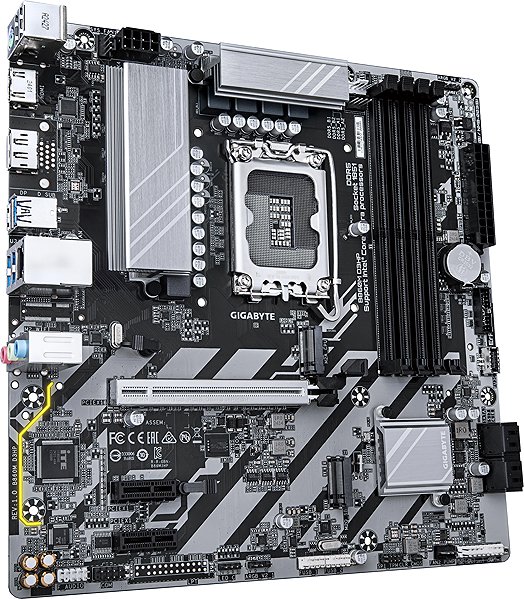

GIGABYTE B860M D3HP
GIGABYTE B860M D3HP
This GIGABYTE motherboard is built with the Intel B860 chipset, and it uses the Intel 1851 socket for the CPU. As is the standard, it has a sound card which can handle 8,0 channels. It skilfully combines compact dimensions with an adequate number of connectors for a complete home computer setup. If you want to build a PC with this particular motherboard model, it is neccessary to use a compatible mATX (Micro ATX) format computer case.
GIGABYTE B860M D3HP Motherboard Key Features
- Intel 1851 socket and the Intel B860 chipset
- GIGABYTE B860M D3HP size: mATX (Micro ATX)
- Integrated audio card for 8,0 channels
- DDR5 computer RAM type with DIMM design
- The motherboard can hold 4 × dual-channel memory modules
GIGABYTE B860M D3HP Motherboard Connectivity
RAM is indispensable, so this GIGABYTE motherboard has a total of 4 RAM slots. It's designed for DDR5 type DIMM memory . You can attach them in dual-channel mode. The motherboard supports modules with a clock speed of up to 9066 MHz.
GIGABYTE B860M D3HP Connectivity
This motherboard is ready to accommodate 3 graphics cards with PCI Express 16x slots. The internal interface also has a total of 2 popular M.2 connectors.

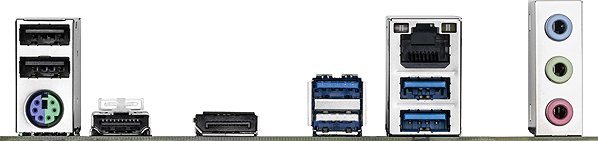

- External communication interfaces: Jack, PS/2, RJ-45 (LAN) 1Gbps, USB 2.0, USB 3.2 Gen 1, HDMI 2.1 and DisplayPort 2.1
- Internal interfaces: COM header, RGB LED Header, TPM header, USB 2.0 header, USB 3.2 Gen 1 header, USB-C 3.2 Gen 1 header, PCIe 5.0 x16 and Serial ATA III
- Maximum supported RAM module clock speed: 9066 MHz
- Serial ATA III: 4 ×
Specifications
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
Colour
SIL Servis Partner a.s., Těšínská 1970/56, 710 00 Slezská Ostrava, Czech Republic, +420 552 301 141, [email protected]
Gigabyte, founded in 1986, is an irreplaceable player in the field of computer components. They put great emphasis on key technologies and the strictest quality standards. The company produces a wide range of basic computer components such as motherboards and graphics cards, but also have many computer peripherals, laptops, tablets, desktops and even network solutions and servers on offer. Recently they also introduced a line of Gigabyte mobile phones.
This product is not an independently functional unit and may require professional installation.
Specifications can be changed without notice. Images are for illustrative purposes only.
