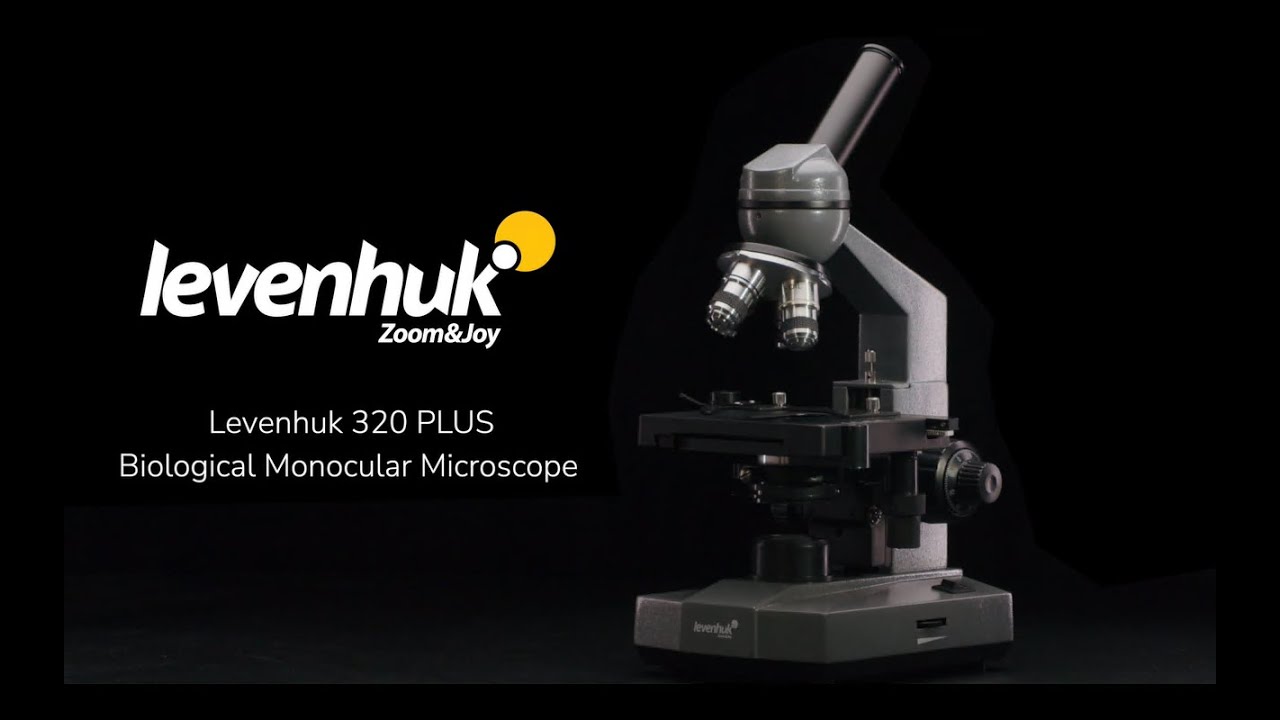

Levenhuk 320 PLUS

The Levenhuk 320 PLUS is a professional laboratory microscope with a monocular head, achromatic optics and wide-angle eyepieces with pointer. It will be used by professionals in research laboratories, diagnostic laboratories and scientific and research institutions. The Levenhuk 320 PLUS is suitable for observations in a variety of scientific fields and can be used for pathology-anatomy, urology and other research. The microscope stage is equipped with a mechanical scale. Under the table there is an Abbe condenser with an iris diaphragm. Three light filters can be installed on the microscope - blue, green, yellow. LED illumination with adjustable brightness is located at the bottom of the microscope, so that observations are made in transmitted light. The lighting can be powered by AC power or batteries. The Levenhuk 320 PLUS is compatible with Levenhuk digital cameras (purchased separately), which are installed on the Levenhuk camera tube instead of the eyepiece.

Optical properties and magnification

The Levenhuk 320 PLUS microscope features a monocular head with a 45° tilt angle that rotates 360°. The rotating lens carrier carries four achromatic lenses that produce a clear and contrasty image without optical defects (aberrations). The magnification of the microscope ranges from 40× to 1600×. A 100× objective can be used for observations with the oil immersion methour

Package contents:
Levenhuk 320 PLUS microscope, 4× achromatic lenses, 10×, 40× and 100× (oil bath), Wide-angle eyepieces with WF10× and WF16× pointer, filters - blue, Green, yellow, a bottle of immersion oil, power adapter, dust cover, user manual

Technical specifications

Eyepiece tube diameter: 23.2 mm
Eyepieces: WF10× with pointer, WF16× with pointer
Lenseschromatic: 4×, 10×, 40×s, 100×s (oil immersion)
Revolver carrier: for 4 lenses
Table dimensions:110 × 125 mm
Table lift with focusing mechanism:58/25 mm
Capacitor: Abbe N. A. 1.25 with iris diaphragm
Focus: coaxial, coarse (20 mm) and fine (0.002 mm)
Power supply: 220 V/50 Hz or 3 AA batteries
Type of light source: 0,75 W
