The MSI B760 GAMING PLUS WIFI motherboard with the Intel B760 chipset and LGA 1700 socket is a comprehensive solution for building a powerful ATX gaming PC, supporting 14th, 13th, and 12th generation Intel Core processors. The board features four DDR5 memory slots with overclocking capabilities up to 6800MHz, two M.2 connectors for fast storage, and extended cooling for stable operation even under heavy loads. The EZ M.2 Clip enables easy, screwless installation of M.2 SSDs, the MSI Driver Utility Installer automatically detects and installs the right drivers, and Audio Boost delivers high-quality sound.
The board uses a 12+1+1 Duet Rail Power System with P-PAK technology and a combination of 8-pin and 4-pin CPU power connectors, ensuring a stable power supply even under demanding all-core loads. The extended heatsink covers the upper part of the power circuits and increases the surface area for heat dissipation. High-quality 7W/mK thermal pads on the MOSFETs and additional choke cooling maintain optimal temperatures at high frequencies. M.2 Shield Frozr technology protects SSDs from overheating and ensures their maximum performance. The six-layer PCB with 2oz thickened copper layers is optimised for higher bandwidth and reliable signal transmission.
The board offers a PCIe 4.0 x16 slot with Steel Armor construction, which provides reinforcement and additional soldering points to securely hold heavy graphics cards with transfer speeds of up to 64GB/s. Two M.2 connectors with PCIe 4.0 support enable the connection of fast SSDs, while four SATA III ports ensure compatibility with traditional storage. The innovative EZ M.2 Clip makes installing an M.2 SSD easy, with no screwdriver required. The DDR5 memory slots are made using advanced SMT technology, which reduces electromagnetic interference. Support for XMP profiles enables easy memory overclocking with automatic power settings.

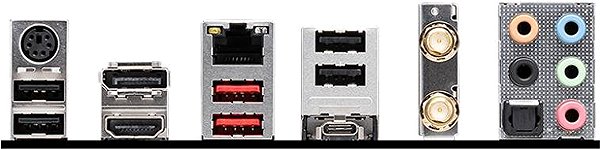

The board is equipped with a 2.5Gbps Ethernet port for fast and stable wired connections and integrated Wi-Fi 6E with Bluetooth 5.3 for low-latency wireless connectivity. The rear panel includes DisplayPort 1.4 and HDMI 2.1 outputs for connecting monitors, three USB 3.2 Gen 2 ports with 10Gb/s transfer speeds, and four USB 2.0 ports for peripheral devices. Audio Boost technology provides studio-quality sound through an eight-channel sound card. The board supports Resizable BAR technology to optimise communication between the CPU and graphics card. Mystic Light Extension lets you connect and synchronise RGB LED strips and other RGB components.
Micro-Star International Co Ltd. C/O MSI Computer Europe BV, Science Park Eindhoven 5706, 5692 ER, Son, Netherlands, [email protected]
The Taiwanese company MSI (Micro-Star International) has earned a solid place in the world of IT, mainly producing motherboards for desktop computers. However, it also produces high quality graphics cards, barebone computers, notebook computers, networking products, servers, and many other computer components. MSI products support the latest technologies and provide the performance necessary for all applications. Recently, the company has begun making a name for itself in the growing segment of gaming notebooks.
This product is not an independently functional unit and may require professional installation.
Specifications can be changed without notice. Images are for illustrative purposes only.
