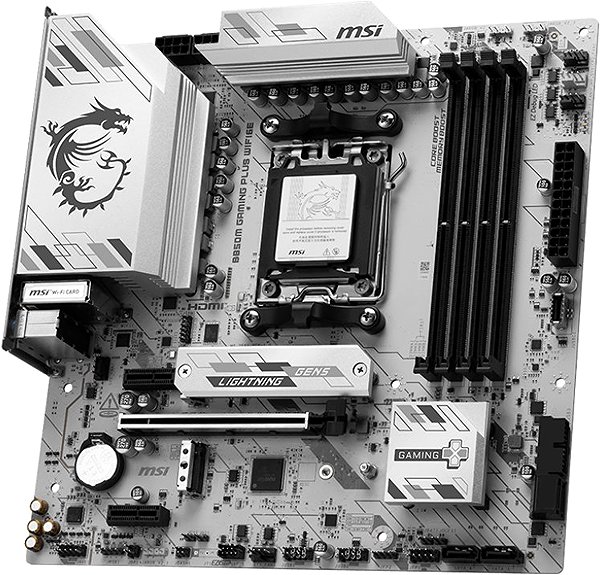

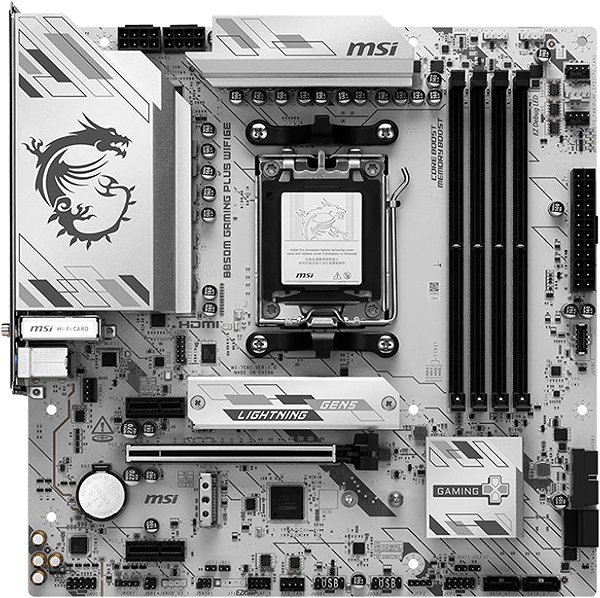

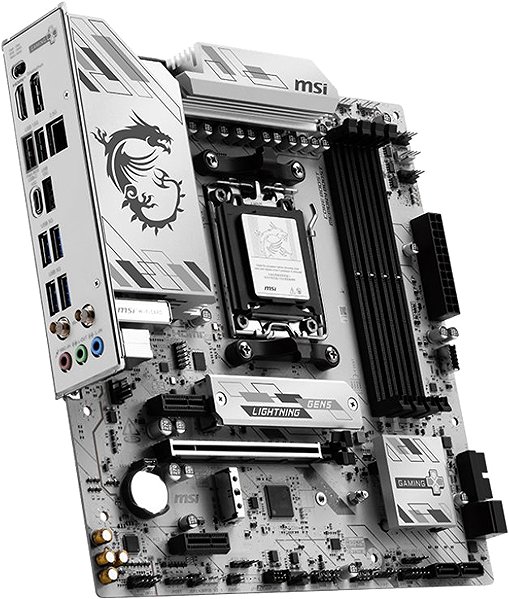

MSI B850M GAMING PLUS WIFI6E
This MSI motherboard is built on the AMD B850 chipset, which has the AMD AM5 socket for the processor. Classically, it has a sound card made for 8,0 channels. You can utilise a network connection module with the very handy Wi-Fi connection support. It smartly combines compact dimensions with adequate connectors to create an exemplary home PC setup. If you want to build a PC with this model, you will require a compatible mATX (Micro ATX) format case.
MSI B850M GAMING PLUS WIFI6E Motherboard Key Features
- AMD AM5 socket and AMD B850 chipset
- MSI B850M GAMING PLUS WIFI6E format: mATX (Micro ATX)
- Integrated audio card for 8,0 channels
- DDR5 RAM type with DIMM design
- The motherboard can hold 4 × dual-channel memory modules
MSI B850M GAMING PLUS WIFI6E Motherboard Connectivity
Computer memory is indispensable, so this MSI motherboard has a total of 4 RAM slots. You can pair it with DDR5 type DIMM RAM. You can hook them up in dual-channel mode. It supports models with a clock speed of up to 8200 MHz.
MSI B850M GAMING PLUS WIFI6E Connectivity
The motherboard is ready to accommodate graphics cards with a PCI Express 16x slot. The internal interface is also equipped a total of 2 popular M.2 slots.
- The motherboard has a built-in Realtek ALC897 sound card

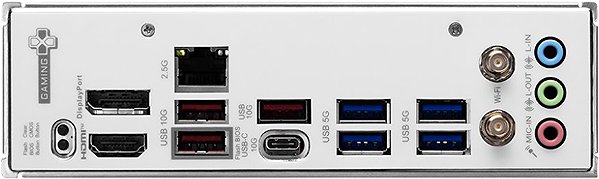

- External interfaces: Jack, RJ-45 (LAN) 2.5Gbps, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2, HDMI 2.1 and DisplayPort 1.4
- Supported internal interfaces: RGB LED Header, TPM header, USB 3.2 Gen 1 bracket, USB-C 3.2 Gen 2 header, USB 2.0 bracket, M.2 PCIe 5.0, PCIe 4.0 x16 and Serial ATA III
- Maximum supported RAM clock speed: 8200 MHz
- Serial ATA III: 4 ×
Specifications
Format & functions
Memory
Advanced parameters
Connectors
Compatibility
Colour
Micro-Star International Co Ltd. C/O MSI Computer Europe BV, Science Park Eindhoven 5706, 5692 ER, Son, Netherlands, [email protected]
The Taiwanese company MSI (Micro-Star International) has earned a solid place in the world of IT, mainly producing motherboards for desktop computers. However, it also produces high quality graphics cards, barebone computers, notebook computers, networking products, servers, and many other computer components. MSI products support the latest technologies and provide the performance necessary for all applications. Recently, the company has begun making a name for itself in the growing segment of gaming notebooks.
