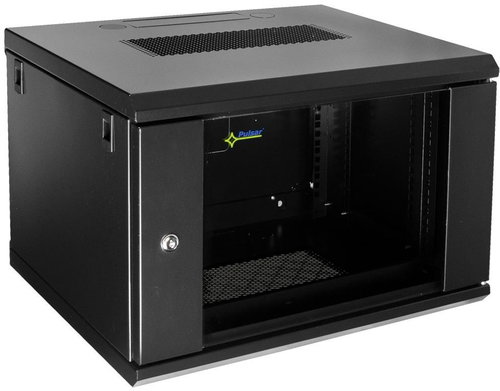

Pulsar CP-PR-116 Lockable rack for DVR / NVR recorders and other devices

Data Cabinet - 6U rack cabinet, dimensions 372×600×450mm (H×W×D), steel material, maximum load 70kg, front door, lock, transparent door, adjustable vertical rail depth, removable blanking panels and ventilation, weight 16.5kg, black colour
  4,871,-
Warranty 24 months Code:  PLUroz01
Pulsar CP-PR-116 Lockable rack for DVR / NVR recorders and other devices 4,871,- In stock 1 pcs at the supplier's
Buy

Pulsar CP-PR-116 Lockable rack for DVR / NVR recorders and other devices

Pulsar CP-PR-116 rack cabinet secures network components in indoor environments. Its steel sheet construction meets IP20 protection standards and supports loads of up to 70kg. The 6U interior features depth-adjustable vertical rails for a flexible hardware layout. A transparent front door with a lock allows easy visual monitoring while protecting your hardware in compliance with GDPR. You can also equip the cabinet with a fan, shelf or power distribution unit.

Key features of the Pulsar CP-PR-116 6U rack cabinet

  • Designed for installing 19" network components indoors
  • Made of steel sheet with IP20 protection
  • 6U capacity with a maximum load of 70kg
  • Equipped with a lockable transparent door
  • Depth-adjustable vertical mounting rails
  • Ventilation slots and removable cable entry glands
  • Dimensions 45×60×37.2cm (h×w×d)
  • Weight 16.5kg

Flexible installation and cable management

Depth-adjustable vertical rails let you customise the interior space for components of various sizes, from shallow patch panels to deeper servers or UPS units. Removable cable glands at the top and bottom of the cabinet keep your cabling neat and tidy. The entire construction, made of steel sheet with a minimum thickness of 0.8mm, provides robust support for your installed equipment.

Security and cooling options

The front door features a lock, which, combined with the opaque steel side panels, protects your equipment from unauthorised access. Passive ventilation is provided by built-in vents. For more demanding operations, you can boost cooling by installing a fan into the pre-prepared slot. The interior can be further customised with a fixed shelf or a power distribution unit.

Specifications

Rack Cabinet Size
6U
Location
Freestanding
Colour
Black
Front panel location
front

Usage and size

Rack Cabinet Size
6U
Location
Freestanding

Colour

Colour
Black

External structure

Front panel location
front
Sidewalls
Opaque
Side panel material
Steel
Door
Glass
Additional equipment
Adjustable depth of vertical rails, Front door, Lock, Removable caps, Transparent door, Ventilation

Cooling system

Number of fan positions
1×
Number of mounted ventilators
No fans

Backlight

Backlight colour
No backlighting

Material

Wardrobe material
Steel

Dimensions

Width
600 mm (60 cm)
Height
450 mm (45 cm)
Depth
372 mm (37.2 cm)
Weight
16.5 kg

Maximum load

Maximum load
70 kg
More Specifications

CP PLUS s.r.o, Franzova 1101/43, 614 00 Brno, Czech Republic, +420 603 171 818, [email protected]

Note:

Specifications can be changed without notice. Images are for illustrative purposes only.
