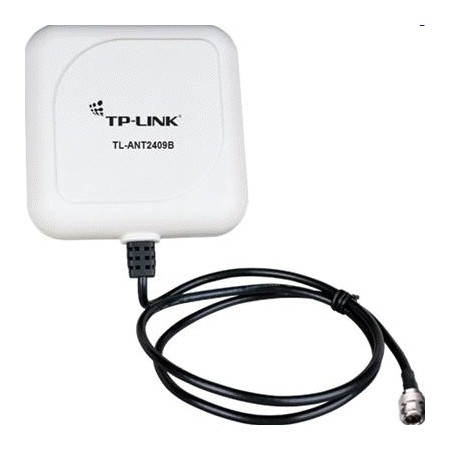

TP-LINK TL-ANT2409B
Antenna Directional, Outdoor, 2.4GHz 9dBi, 1m, N-Female connector
Show full description
Code:
TP601d2
Producer's Website:
Don't like the alternatives? Choose from the full product list
TP-LINK TL-ANT2409B
Discontinued
TP-LINK TL-ANT2409B
High quality and reliable outdoor antenna from TP-LINK TL-S staining ANT2409B. Directional Antenna is designed for both outdoor as well as indoor locations, operates at a frequency of 2.4 GHz and has an output of 9 dBi. The antenna can be mounted for example on a rod or on a wall. This model offers the ability to connect the antenna connector N-Female. It is supplied together with the cable type CFD-200 with a length of one meter.
Technical parameters and specifications:
Frequency range:
2.4 GHz to 2.4835 GHz
Impedance:
50 Ohm
Performance:
9 dBi
VSWR:
1.92: 1 Max
Polarization:
Linear, vertical
Beamwidth (HPBW):
Horizontal: 60 °
Vertical: 76 °
Connector:
N-Female
Cable:
1 m long CFD-200
Radiation:
Direct
Location:
The interior and exterior
Mounting option:
The pole or wall
Resistance:
Speed: 216 km/h
Dimensions:
120 x 120 x 40 mm
Operating temperature:
-40 To 60 ° C
Storage Temperature:
-40 To 80 ° C
Operating humidity:
10-90%
Storage humidity:
5-90%
Safety, emissions and more:
CE, FCC, RoHS Compliance
Technical parameters and specifications:
Frequency range:
2.4 GHz to 2.4835 GHz
Impedance:
50 Ohm
Performance:
9 dBi
VSWR:
1.92: 1 Max
Polarization:
Linear, vertical
Beamwidth (HPBW):
Horizontal: 60 °
Vertical: 76 °
Connector:
N-Female
Cable:
1 m long CFD-200
Radiation:
Direct
Location:
The interior and exterior
Mounting option:
The pole or wall
Resistance:
Speed: 216 km/h
Dimensions:
120 x 120 x 40 mm
Operating temperature:
-40 To 60 ° C
Storage Temperature:
-40 To 80 ° C
Operating humidity:
10-90%
Storage humidity:
5-90%
Safety, emissions and more:
CE, FCC, RoHS Compliance
TP-LINK Czech s.r.o., Pekařská 10a, 15500 Praha 5, Česko, [email protected], www.tp-link.com
TP-LINK Czech, s. r. o., Pekařská 695/10, Jinonice, 155 00 Praha 5, CZ +420 212 812 622 / SK +421 233 006 532, [email protected]
Note:
Specifications can be changed without notice. Images are for illustrative purposes only.
