Triton RMA-42-A68 - 19" rackmount rack 22U

Data Cabinet 22U
  24,489,-
Shop faster with pickup at AlzaBox or in-store.
Add to list
Triton RMA-42-A68 - 19" rackmount rack 22U 24,489,- Currently Unavailable

Triton RMA-42-A68 - 19" rackmount rack 22U

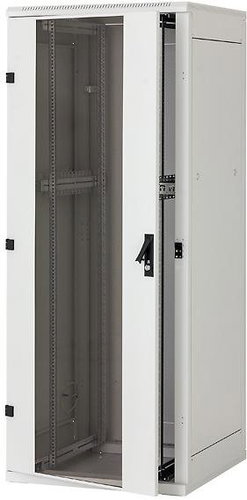

The Triton RMA-42-A68 floor-standing cabinet is designed for the installation and protection of network and data components. It is built on a stable, welded steel frame. The 22U interior can accommodate standard 19" equipment up to a total depth of 800mm. The front glass door provides visual control over the installed technology, while the removable, opaque side panels and rear cover allow easy access to cabling and components.

Key features of the Triton RMA-42-A68 floor-standing cabinet

  • Designed for installing 19" network and data components
  • Made of steel with a stable welded frame
  • 22U capacity with a maximum load of 400kg
  • Front glass door and removable steel side panels
  • Equipped with a removable rear cover
  • Includes earth bonding for all removable parts
  • IP20 rating suitable for indoor use
  • Dimensions: 197 × 60 × 80cm (H×W×D)
  • Weight: 79kg

Stable construction and access to technology

The welded steel frame can support a load of up to 400kg, which is enough even for heavier server components and backup power supplies. Access to the installed technology from all sides is made easy by the fully removable side panels and rear cover. Removable blanking panels enable neat cable management into the cabinet. Operational safety is enhanced by the earth bonding, which connects all removable parts of the cabinet.

Specifications

Rack Cabinet Size
22U
Location
Freestanding
Colour
Grey
Sidewalls
Opaque

Usage and size

Rack Cabinet Size
22U
Location
Freestanding

Colour

Colour
Grey

External structure

Sidewalls
Opaque
Side panel material
Steel
Door
Glass
Additional equipment
Grounding connection, Removable back cover

Material

Wardrobe material
Steel

Dimensions

Width
600 mm (60 cm)
Height
1,970 mm (197 cm)
Depth
800 mm (80 cm)
Weight
79 kg

Maximum load

Maximum load
400 kg
More Specifications

Nakladatelství TRITON,s.r.o., Vykáňská 1483/5, 10000 Praha 10 - Strašnice, Česká republika, 274 780 579, http://www.tridistri.cz, [email protected]

Note:

Specifications can be changed without notice. Images are for illustrative purposes only.
