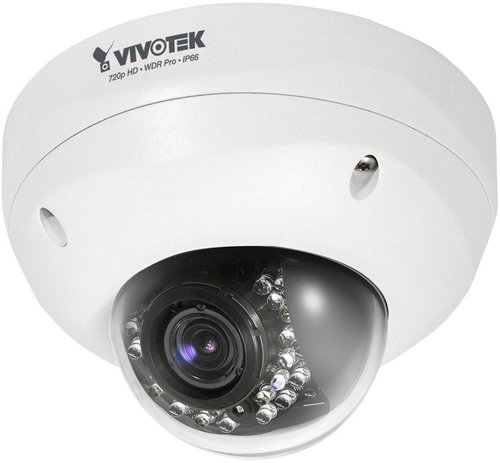

Vivotek FD8372

Easy to use IP Camera 5 Mpx sensor and advanced compression H.264 . You get her capacity savings and better quality recording. In addition, it supports the popular output formats, MPEG-4 or MJPEG. Outdoor housing design can withstand severe weather conditions and the Vandal adjustment protects the camera from destruction. The combination of high resolution and robust design has all the prerequisites for safe monitoring of large outdoor areas. Thanks night mode a built-in IR illumination is suitable for monitoring 24 hours a day.

IP camera offers simultaneous transmission 3 independent streams to up to 10 clients . Various compression and resolution settings to satisfy the demands of various surveillance equipment, such as a monitoring center or access from mobile phones. Function Tamper Detection makes this IP camera really intelligent device that allows, for example, alert staff in case of blockage or zasprejování housing.

The camera focus exactly on the desired place thanks 3osému mechanism and, if necessary, zoom in function ePTZ to zoom. The camera offers a built-in lens driven by stepper motors So you can remotely set the focal length and focus of the image, which greatly simplifies the setup and maintenance of the camera. Installation is easy, even with a single cable Power over Ethernet PoE (802.3af PoE). In addition to offering this IP camera connection of input and output elements such as 3 sensor inputs such as running lights or an alarm.

Specifications:

Design:
Outdoor (IP66)
Vandal resistant design (IK10)

Image capture:
Sensor: 1/2, 5 "Progressive CMOS WDR
Resolution: 2560 x 1920 pixels (up to 10 frames/s)
Sensitivity in day mode 0.03 Lux
Sensitivity in night mode: 0.001 Lux
Parameters shutter 1/5 ~ 1/32000 s, AGC, AWB, AES
Video compression: MJPEG, MPEG-4, H.264, Multistreaming
Features: Day/night feature, sensitive to IR illumination, built-in mechanical IR-cut filter
Built-in illumination: IR LED (up to 20 m)

Lens:
f = 3.6 ~ 9 mm
F = 1.8 ~ 3.4
Horizontal viewing angle: 35.45 ° ~ 88.90 °
Vertical viewing angle: 26.69 ° ~ 67.01 °

Special Features:
Micro SD/SDHC slot
3-axis mechanism for manual shooting
ePTZ
Access from mobile phones
Adaptive streaming for dynamic frame rate control
Tamper Detection
Privacy Masking
Remote Focus Lens

Sound:
Input for external microphone
Loudspeaker output
Audio Compression GSM-AMR 4.75 kbps ~ 12.2 kbps MPEG-4 AAC 16 kbps ~ 128 kbps, 64 kbps G.711

Network protocols:
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X

Consumption:
about 7.53 W
PoE 802.3af

Interface:
3x alarm input for connecting external devices (such as PIR sensor, door contact)
1 × output to control external devices (eg light, door lock)
1x RJ-45 (10/100 Mbps) (PoE 802.3af)
1x Micro SD/SDHC/SDXC slot

Dimensions:
173 x 115 x 173 mm

Weight:
about 1453 g

Operating temperature:
-20 ° to 50 ° C

Packing:
IP Camera FD8372
Self-adhesive template for easy installation
Grommet
Mounting plate
Allen key/bag desiccant/screws/double sided adhesive tape/AV cable
Waterproof connector
Quick Installation Guide
CD with software
