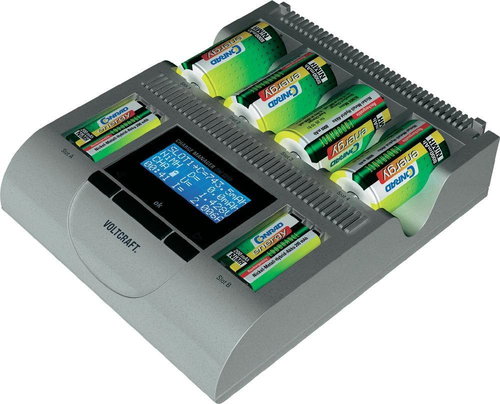

Voltcraft Charge Manager 2016

Voltcraft Charge Manager 2016 fulfils the role of a charger as well as an apparatus for analysing the quality of batteries. Individually or in combination, you can recharge up to four AA or AAA batteries, large or small mono batteries, and two 9V accumulators. The Charge Manager 2016 offers five different programmes for battery care and restoration. You can set detection of defective cells, discharge, charge, or set a cycle and activations. All these processes help increase the life and performance of your batteries. Recovery functions and formatting can recover your older batteries and help them regain their maximum capacity.

For NiMH/NiCd batteries, Charge Manager 2016 offers 4 selectable charging and discharging currents for use in practice. The charger has a practical 4-line blue backlit LCD display, which clearly displays all the necessary information. Once charging is complete, the charger switches to power saving mode, reducing energy costs. The battery status, however, continues to be monitored and if necessary, the charger initiates the trickle charging process. One big advantage is the built-in USB port, which gives you the ability to download the appropriate software for free, allowing the Charge Manager 2016 to manage data and transfer them to a computer for analysis and archiving.

Dimensions:
176 x 56 x 206mm (WxHxD)

Suitable for rechargeable battery sizes:
AAA, AA, small mono a mono, 9V

Suitable batteries:
NiCd, NiMH, NiZn

Max. charging current on shaft:
2000mA

Typical recharge time for AA 2000mAh battery:
65 min

Charging current (9V)
22.5mA

Number of rechargeable 9V shafts:
2

Number of rechargeable AA shafts:
4

Number of rechargeable AAA shafts:
4

Number of rechargeable C shafts:
4

Number of rechargeable D shafts:
4

Number of charging channels/shafts:
6

Features:
5 battery care and recovery programmes (charging, discharging, testing, cycle and activation)
Off criteria: susceptible peak, Delta-T procedure and Minus Delta U switch-off
Automatic trickle charge
Tracks every shaft
Detection of damaged batteries
Mechanical protection against reverse polarity
Recovery and discharge function for weak batteries
Automatic battery detection
Memory Backup (up to a week)
Automatic adjustment of charging current
Simple 3-button control
Large blue backlit 4-line LCD display
USB interface for data reading
Removable transparent cover

Packaging includes:
Charge Manager
AC adapter
Transparent cover
User Manual
