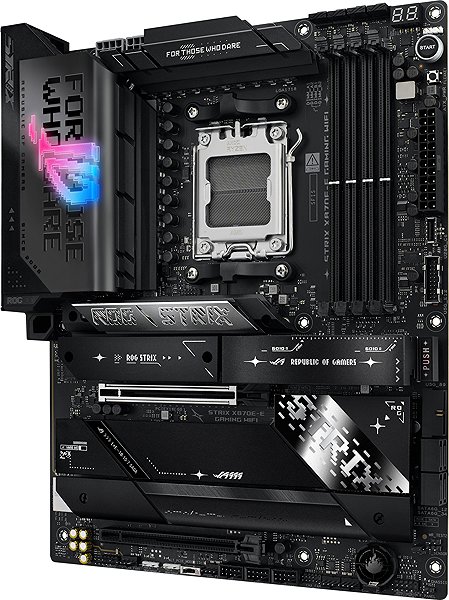

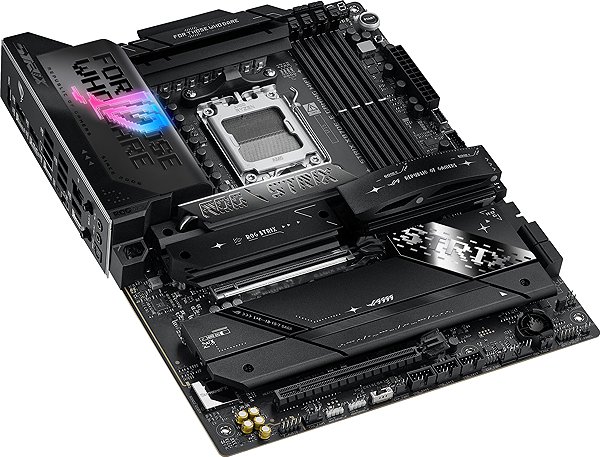

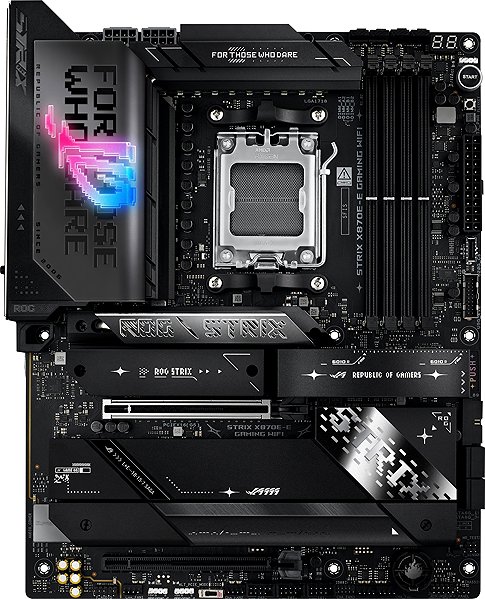

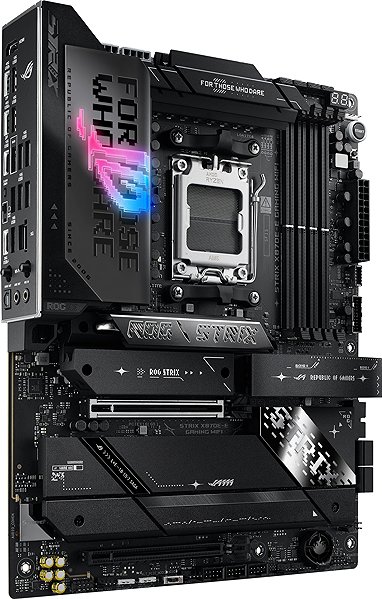

The ROG STRIX X870E-E GAMING WIFI ATX motherboard with the AMD X870E chipset supports AMD Ryzen 9000, 8000 and 7000 series desktop processors for the AMD AM5 socket. The board features one PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim and one PCIe 4.0 x16 slot, and uses an 18+2+2 power solution rated at 110A per phase with two ProCool II power connectors. It supports up to 256GB of DDR5 memory in four DIMM slots in Dual-channel mode with NitroPath DRAM technology, AEMP, and extensive support for AMD EXPO overclocking profiles with frequencies up to 8400MHz.
The board supports PCIe 5.0 for graphics cards, which has double the data transfer speed of PCIe 4.0, improved signal integrity and is backwards compatible with previous PCIe versions. The PCIe 5.0 x16 slot is equipped with a SafeSlot bracket to support graphics cards and can be easily released with the PCIe Slot Q-Release Slim. It includes three integrated M.2 slots with PCIe 5.0 x4 support and two M.2 slots with PCIe 4.0 x4 support. The board is equipped with massive M.2 heatsinks with a combined heatsink and M.2 backplate to maintain optimal operating temperatures even under heavy loads.
ASUS AI Advisor uses artificial intelligence technology to understand natural language questions or scenario descriptions, enabling users to discover the features and functions of ASUS motherboards. Dynamic OC Switcher lets you set current and temperature thresholds to automatically switch between manual overclocking for multi-threaded tasks and Precision Boost Overdrive for single-threaded tasks, with an enhanced Overclocking Load Guard instant current protection mechanism. Core Flex provides control over clocks, power, and thermals, and supports several user-driven features that can independently adjust power, current, and temperature limits. The board features an integrated Asynchronous Clock generator that decouples the CPU base clock from the memory, PCIe, and Infinity Fabric speed.

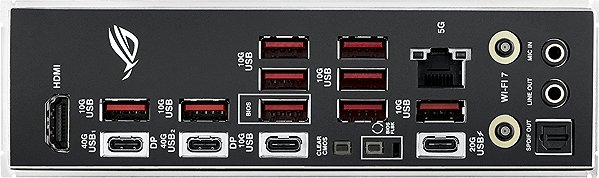

AI Cooling II balances the thermal and acoustic properties of any PC build, and AI Networking II combines intelligent technologies that continuously optimise network performance and unlock the speed of WiFi 7. The board includes VRM heatsinks with an integrated I/O cover and highly conductive thermal pads connected by an L-shaped heat pipe, CPU fan headers, a pump fan header and 4-pin chassis fan headers. Connectivity includes WiFi 7 with 320MHz bandwidth support in the 6GHz band, 4096 QAM, and Multi-Link Operation (MLO) for a stable connection in the 2.4, 5, and 6GHz bands with the ASUS WiFi Q-Antenna and Realtek 5Gb Ethernet. The board features a USB 20Gbps Type-C connector on the rear I/O panel with PD 3.0 up to 30W and USB Wattage Watcher, and ten other USB 10Gbps ports.
The PCIe Slot Q-Release Slim lets users remove a graphics card by tilting the card in the slot instead of pressing a retention clip. The Q-Code diagnostic display shows two-digit diagnostic codes for troubleshooting, and the Q-LED helps with any potential problems. The BIOS FlashBack button enables BIOS updates from a FAT32 USB drive without needing a processor or memory, and the Clear CMOS button restores default settings. The board includes three addressable Gen 2 RGB headers for customisable lighting with ASUS Aura Sync technology for synchronisation with compatible hardware. Armoury Crate software lets you customise RGB lighting and control ASUS devices, including ASUS Fan Xpert 4 software for comprehensive control over fans and all-in-one water coolers. ASUS GlideX enables screen sharing, screen control and cross-device operation via USB or WiFi.
ASUSTek COMPUTER INC. 1F.,No.15, Lide Rd., Beitou Dist., Taipei City 112 Tel: +886-2-2894-3447 Tel: +886-2-2890-7798 https://gr.asus.com/ProductSafety ASUS COMPUTER GmbH Harkortstrasse 21-23 40880 Ratingen Germany, Europe Email: [email protected]
ASUS COMPUTER GmbH, Harkortstrasse 21-23, 40880 Ratingen, Germany, Europe, [email protected]
ASUS is a symbol of the growth of Taiwan's economy. The firm's beginnings date back to April 2, 1989, when as a small manufacturer of motherboards began his work with a few employees. Today, Asus employs more than 12,500 employees worldwide.
ASUS products can be found in almost every category of the information technology marketplace. ASUS is focused on desktops, laptops, phones, optical drives and components. In the manufacture of motherboards, the company is now the dominant player with a staggering 40% market share.
This product is not an independently functional unit and may require professional installation.
Specifications can be changed without notice. Images are for illustrative purposes only.
