The ASUS TUF Gaming Radeon RX 9070 is a graphics card built on the AMD RDNA 4 architecture with a Navi 48 chip. It features 16GB of GDDR6 memory at 20000MHz and a 256-bit bus. The graphics chip runs at 2400MHz, and the card uses a PCI Express 5.0 x16 interface. For display connectivity, it offers DisplayPort 2.1a and HDMI 2.1b. The card is designed for demanding gamers who require stable performance at high resolutions, including 4K.
GDDR6 / 16GB
VRAM
PCIe 5.0 x16
Bus interface
2x 8-pin
Additional power
RDNA 4.0
Chip architecture
750W
Recommended PSU wattage
Key features of the ASUS TUF Radeon RX 9070 O16G GAMING graphics card
AMD RDNA 4.0 architecture with advanced ray tracing and AMD FidelityFX Super Resolution 4 AI upscaling delivers top-tier 4K gaming performance
Extremely durable military-grade TUF components with certified coils and MOSFETs, capacitors with 52% wider temperature tolerance and 2.5× longer lifespan than standard components
A phase-change GPU thermal pad effectively fills the gaps between the GPU and the heatsink, melting to provide superior thermal conductivity and optimal heat dissipation
Advanced Axial-tech cooling with three dual ball bearing fans delivers up to 31% more air than standard fans, with a lifespan of up to 80000 hours
MaxContact technology expands the heatsink's contact area by 5% compared to traditional solutions, reducing temperatures by up to 2°C in conjunction with the massive heatsink
A vented metal exoskeleton with a 3.125-slot design includes a high-quality aluminium shroud and aluminium backplate to prevent PCB flex and maximise heat dissipation
A protective PCB coating guards against short circuits caused by moisture, dust and debris, while ASUS GPU Guard secures all four corners of the chip
A Dual BIOS switch lets you choose between Quiet and Performance modes, and GPU Tweak III software offers advanced tuning and performance monitoring for the graphics card

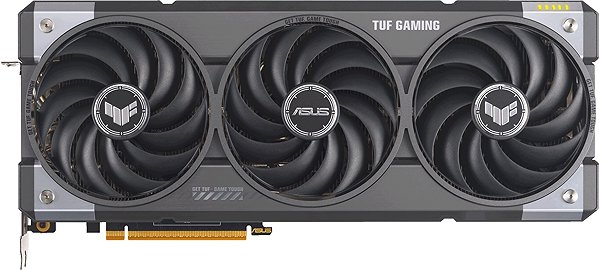

Advanced cooling system
The card's cooling is handled by an advanced system featuring MaxContact technology, which increases the heatsink's contact area by 5% compared to standard solutions. Three Axial-tech fans, equipped with dual ball bearings, move 31% more air than conventional fans. The two outer fans rotate counter-clockwise to reduce turbulence. The fans stop when temperatures are below 55°C and start up again when they exceed 60°C. Optimal heat dissipation from the GPU is ensured by a special phase-change thermal pad that melts to effectively fill the gaps between the chip and the heatsink.
Durable construction and quality components
The card's construction uses military-grade components, including certified TUF coils and MOSFETs, to ensure stable power delivery. TUF 5K capacitors offer a 52% wider temperature tolerance and a 2.5× longer lifespan than standard components. The printed circuit board is protected by a special coating against moisture, dust and debris. A metal shroud and a vented aluminium backplate ensure heat dissipation and prevent the board from sagging. ASUS GPU Guard technology reinforces all four corners of the chip, reducing the risk of cracking, while a mounting bracket ensures even pressure.
Advanced manufacturing and software technologies
The card features a Dual BIOS with a switch between Quiet and Performance modes. The Auto-Extreme manufacturing process completes all soldering in a single pass, which reduces thermal stress on components and eliminates the use of harsh cleaning chemicals. Support for AMD HYPR-RX activates all available technologies to boost performance and reduce latency. AMD FidelityFX Super Resolution 4 provides high-quality image scaling using artificial intelligence.
Intuitive software and customisation
The GPU Tweak III software offers a centralised control panel for tuning the card, which includes an improved voltage and frequency adjustment tool. It features 0dB technology to stop the fans, automatic profile switching, and a fully customisable on-screen display. The card is compatible with Aura Sync for synchronising ARGB lighting. A one-month subscription to Adobe Creative Cloud is included with the product.
Technical specification

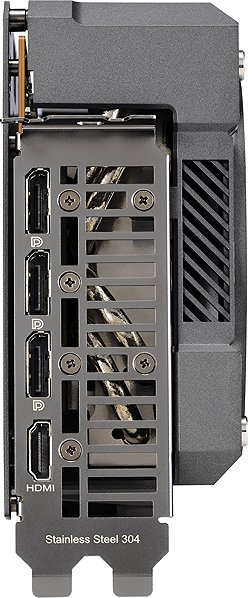

Monitor connection: DisplayPort 2.1a, HDMI 2.1b
Dimensions: 330×62.5×140mm
Stream like a pro
The new generation of the AMD Radiance Display™ Engine and the enhanced Media Engine let you enjoy professional-level recording and streaming like never before. Provide your community with improved visual quality when streaming and recording at lower bitrates, so you can focus on playing your best game.
High-quality streaming with AV1
Unlock new multimedia experiences with full AV1 encode/decode support, designed for incredible image quality at lower bitrates and smaller file sizes.
AMD Noise Suppression
AMD Noise Suppression uses artificial intelligence to help reduce ambient audio noise from your surroundings, providing greater clarity and focus whether you're on an important work call or immersed in a competitive game.
Create with your favourite tools
Bring your creativity to life with AMD Radeon™ RX 9000 series graphics cards in the most popular content creation applications. AMD Radeon™ graphics cards are designed to accelerate AI-enhanced features in many content creation applications, including Adobe® Creative Cloud, Blender®, DaVinci Resolve, Topaz Photo & Video AI and many more.
Determining the utilization of the graphic card. Graphic card for multimedia or office has different parameters than a professional model, or a card for gaming.
The memory stores information necessary for graphic calculations. A higher number in the end indicates newer technology. Today's standard is the GDDR6/GDDR7.
Šířka sběrnice udvádí, kolik dat se dostane z grafické paměti do grafického čipu (GPU) za jeden takt. Obvykle bývá 64, 128 nebo 192bitová, u výkonnějších modelů pak 256/384bitová. Širší sběrnice urychluje výrazně přístup GPU k datům, stejně jako vyšší frekvence grafické paměti.
Outputs for connection to a monitor. For analog, VGA connector is used, the digital is DVI or the newer HDMI and DisplayPort (DP). Digital interfaces offer better image quality, higher resolution (up...
The number of video outputs refers to the number of physical video connectors (HDMI, DisplayPort, DVI, VGA, USB-C Alt-Mode...) present on the graphics card.
Indicates how many separate monitors can be connected to the card at the same time. The limit is determined by the chip's internal display units and the data throughput of the outputs.
OpenGL is a proven cross-platform graphics API that serves as a universal language between applications and GPUs. Although games today choose Vulkan or DirectX, it remains a key standard in professional CAD and 3D applications.
For removal of unwanted heat is used either the passive cooling (silent) or active cooling (fan). there is also the possibility of alternative cooling (water cooler).
Graphics cards with lower wattage power supply just need PCI-Espress slot, more powerful models with higher consumption require an additional power source.
To maximize the performance of your computer must have a sufficiently powerful source. The value is stated in watts, and indicates the minimum appropriate power source.
750 W
More Specifications
ASUSTek COMPUTER INC.
1F.,No.15, Lide Rd., Beitou Dist.,
Taipei City 112
Tel: +886-2-2894-3447
Tel: +886-2-2890-7798
https://gr.asus.com/ProductSafety
ASUS COMPUTER GmbH
Harkortstrasse 21-23
40880 Ratingen
Germany, Europe
Email: [email protected]
ASUS is a symbol of the growth of Taiwan's economy. The firm's beginnings date back to April 2, 1989, when as a small manufacturer of motherboards began his work with a few employees. Today, Asus employs more than 12,500 employees worldwide.
ASUS products can be found in almost every category of the information technology marketplace. ASUS is focused on desktops, laptops, phones, optical drives and components. In the manufacture of motherboards, the company is now the dominant player with a staggering 40% market share.
Note:
This product is not an independently functional unit and may require professional installation.
Specifications can be changed without notice. Images are for illustrative purposes only.
Na obrázcích je verze karty RX 9070 XT, podle oficiálních stránek výrobce má karta 2x 8-pin viz. External Link
Na obrázcích je verze karty RX 9070 XT, podle oficiálních stránek výrobce má karta 2x 8-pin viz. External Link
