AXAGON ADS-1PSN ACTIVE USB-A 2.0 > serial RS-232 Prolific adapter / cable 1.5m

The AXAGON ADS-1PSN active USB converter easily adds an RS 232 standard serial port to your computer. The use of an original chip from the Taiwanese company Prolific guarantees flawless compatibility for the USB to serial RS232 adapter.

The permanently attached 1.5m USB-A cable is suitable for use with both desktop computers and laptops. The cable has gold-plated connectors and contacts, and the highly durable adapter body is also suitable for industrial applications. Double shielding protects transmitted signals from adverse interference.

The converter is the ideal computer accessory for connecting barcode readers, receipt printers, scanners, microcontroller programmers, CNC machines, modems, updating or configuring set-top boxes, security devices, switches, transceivers and other devices.

Input:

• USB 480Mbps interface (USB 2.0), backward compatible with USB 1.1.
• USB Type-A male connector located on a permanently attached 1.5m cable.

Output:

• 1× RS-232 serial port with DB9 male connector integrated into the adapter body.
• Adjustable transmission speed from 75 bit/s – 1000 kbit/s.
• Compatible with 16C950 UART, backward compatible with 16C550, 16C650, 16C750 and 16C850.

Other features:

• Plug and Play support.
• 768B transmit and 256B receive FIFO buffer.
• Adjustable flow control: Xon/Xoff, hardware or none.
• Adjustable word length: 4, 5, 6, 7 or 8 bits.
• Adjustable parity (even, odd, none, mark, space), 1, 1.5 or 2 stop bits.
• Adjustable FIFO buffer usage: receive (1–14b) and transmit (1–16b).
• Adjustable port number from COM1 to COM256.
• Power management support.
• Adapter powered by USB bus (bus power) – no additional power supply needed.
• Gold-plated connectors and contacts ensure a reliable connection and prevent oxidation, ensuring a long converter lifespan.
• Cable outer diameter 5mm, double shielding.

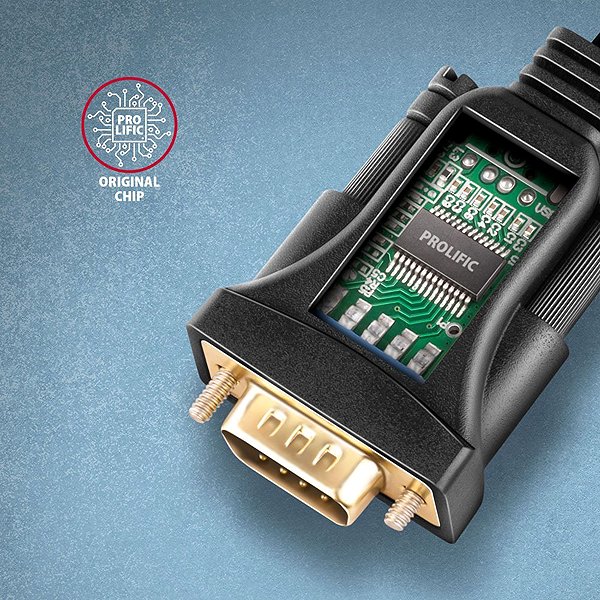

• Uses an original Prolific PL2303GT chipset with an integrated serial line driver.
• Adapter body dimensions 35×56×17mm, cable length 1.5m.
• Adapter weight 83g (including cable).

Supported operating systems:

• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 and later (all 32- and 64-bit versions of Windows OS are supported), Mac OS X 10.4.x and higher, Linux with kernel 2.6.x and higher, most Android versions.
• Note: The drivers are included with the supported operating systems and install completely automatically.
