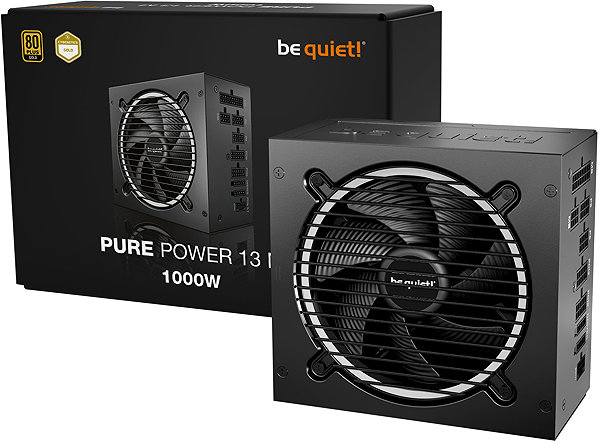

Be quiet! PURE POWER 13 M 1000W
The Be quiet! PURE POWER 13 M PC power supply delivers 1000W of power for gaming and professional builds. It meets ATX 3.1 standard specifications and supports the current generation of processors and graphics cards. Its 80 PLUS Gold certification indicates an efficiency of up to 94.4%, which reduces power consumption and heat generation. The fully modular cabling system simplifies installation and reduces airflow obstructions within the case. The power supply's purpose is to power the connected components.
1000W
Power
ATX
Form factor
80 PLUS Gold
Certification
Fully
Modularity
Key technologies of the Be quiet! PURE POWER 13 M 1000W PC power supply
- Total power output of 1000W
- High efficiency up to 94.4% confirmed by 80 PLUS Gold certification
- Fully modular cabling system for easy installation and cable management
- ATX 3.1 standard and PCIe 5.1 support ensure compatibility with future hardware
- Zero RPM fan function for quiet operation
- Advanced LLC topology for stable and precise voltage
Choosing a power supply
When choosing a suitable PC power supply, the key parameter, besides the form factor, is its power output. This indicates the maximum number of watts the power supply can continuously provide to the components in the computer. It is a good idea to use a web calculator to determine the optimal power output based on your chosen components.
The future with ATX 3.1 and 80 PLUS Gold efficiency
The power supply complies with ATX 3.1 standard specifications and is compatible with PCIe 5.1. It includes a native 12V-2x6 connector to power graphics cards. The power supply also offers four PCIe 6+2-pin connectors for compatibility with modern graphics cards. This combination of connectors powers various configurations without the need for adaptors. The 80 PLUS Gold certification confirms an efficiency of up to 94.4%. This parameter means that a smaller portion of energy is converted into waste heat. Lower heat production reduces the load on the cooling system and the need for higher fan speeds.
Quiet operation and modular cabling
The power supply uses an advanced semi-passive Zero RPM cooling mode. At low to medium loads, such as when working with documents or browsing the web, the be quiet! fan remains completely off. This fan, with its airflow-optimised blades, only activates at higher loads when its cooling performance is truly needed. This system contributes to quiet operation without distracting noises. The fully modular cable design lets you connect only the cables necessary for your specific build. This approach simplifies their organisation and routing inside the case. The result is a clean layout that does not restrict airflow and helps dissipate heat from the components.
Stability and comprehensive protection
Thanks to its LLC topology, the power supply provides voltage regulation. A single 12V rail is designed to handle sudden power spikes, which can briefly reach up to twice the rated power. This design allows high-performance processors and graphics cards to operate even under increased load. The PC power supply includes a set of safety features to protect connected components during abnormal operating conditions. It includes protection against overvoltage, overcurrent, overload, short circuit, overheating, and inrush current.
Connectors
- 1× ATX 24-pin
- 2× CPU 8-pin (4+4)
- 4× PCI-E 8-pin (6+2)
- 1× PCI-E 16-pin
- 6× SATA 15-pin
- 2× Molex 4-pin
Package contents
- PC power supply
- Set of mounting screws
- User manual
- 1× Power cable
- 1× ATX 24-pin
- 1× CPU 4+4-pin
- 1× CPU 8-pin
- 1× PCI-E 16-pin
- 1× Double PCI-E 6+2-pin
- 2× PCI-E 6+2-pin
- 1× SATA
- 1× SATA/PATA
80 Plus certification in the European market
The 80 Plus certification was created to objectively assess the efficiency of computer power supplies. This gives users a simple and clear way to compare different models. In the European market (which uses a 230V voltage), there are six levels of 80 Plus certification with specific requirements for PC power supplies. Higher energy efficiency primarily means lower energy consumption.
| PC power supply load | Efficiency at 20% load | Efficiency at 50% load | Efficiency at 100% load |
|---|---|---|---|
| 80 PLUS | 82% | 85% | 82% |
| 80 PLUS Bronze | 85% | 88% | 85% |
| 80 PLUS Silver | 87% | 90% | 87% |
| 80 PLUS Gold | 90% | 92% | 89% |
| 80 PLUS Platinum | 92% | 94% | 90% |
| 80 PLUS Titanium | 94% | 96% | 94% |
