CORSAIR AIR 5400 RS-R ARGB Black
The Corsair AIR 5400 RS-R PC case lets you build powerful PC systems with a focus on efficient cooling and a clean look. Its three-chamber layout strategically divides the internal space to separate the main components, such as the processor, graphics card, and power supply, optimising airflow and reducing thermal interference. This design improves cooling potential while simplifying cable management. The case accommodates motherboards up to E-ATX format and showcases your hardware through two glass panels.
Midi Tower
Size
180mm
Max. CPU cooler height
360mm
Maximum graphics card length
3×
Number of installed fans
10×
Total number of fan positions
Key features of the Corsair AIR 5400 RS-R ARGB PC case, black
- Three-chamber design separates the power supply from the processor and graphics card
- Two tempered glass panels open like doors for easy access
- Three pre-installed reverse-rotor fans draw in air from the bottom
- RapidRoute 2.0 system uses a perforated plate for flexible cable routing
- The case supports mounting up to three radiators simultaneously
- The front panel has a USB 3.2 Gen 2x2 Type-C port
Three-chamber cooling concept
The main chamber houses the motherboard, processor, and graphics card, giving them direct access to cool air drawn in from the bottom and front. The second and third chambers, located behind the motherboard, hide the power supply and storage devices. This division prevents components from heating each other, creates separate zones for key components, and maintains low operating temperatures even under heavy load.
Panoramic component view and ARGB fans

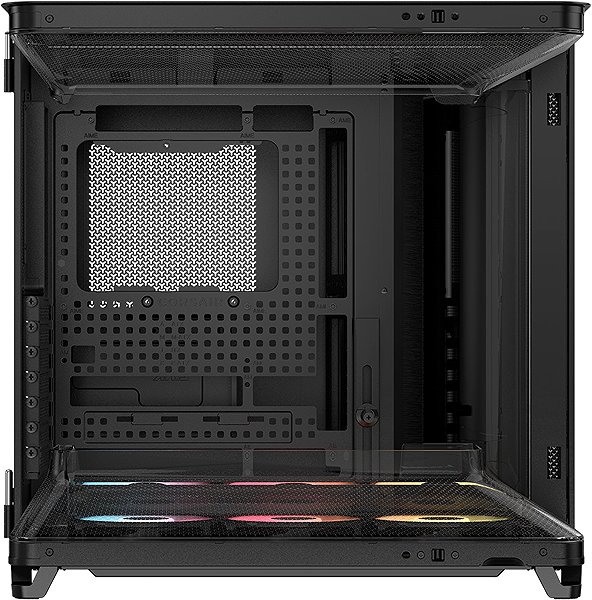

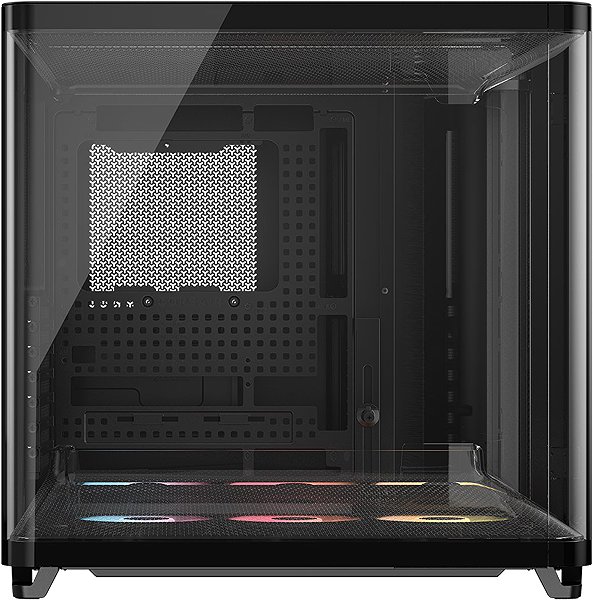

The case reveals the internal layout of your build through two tempered glass panels on the front and side, which meet at the corner. Both panels open like double doors without needing any tools. This provides an unobstructed view of the build, free from pillars, and gives you direct access to the hardware for maintenance or upgrades. Hidden hinges contribute to a clean, uninterrupted view of the components. The case is equipped with three 120mm RS-R ARGB fans. This ensures the lighting effect remains fully visible from the interior. The fans can be daisy-chained and connected directly to the PWM and 5V ARGB connectors on the motherboard for easy synchronisation and control.
Cable management in the PC case
The Corsair RapidRoute 2.0 system is designed for cable organisation. The rear chamber contains a perforated plate that replaces fixed tie-downs, offering numerous attachment points for cable ties exactly where you need them. This RapidRoute 2.0 cable management system keeps the case interior tidy and does not restrict airflow in the main chamber. The space behind the plate is deep enough to route even thicker cables.
Liquid cooling support
The case offers extensive options for installing liquid cooling. Users can fit up to 360mm radiators in the front, top, and bottom positions simultaneously. In total, you can install up to ten 120mm fans. The presence of three positions for 360mm radiators gives you the freedom to design complex cooling circuits for both the processor and the graphics card. The rear position supports a 120mm radiator for additional heat dissipation.
Connectivity and large component installation
The front I/O panel features ports for easy peripheral connection. You have access to a high-speed USB 3.2 Gen 2x2 Type-C port with a transfer rate of up to 20Gb/s and two USB 3.2 Gen 1 Type-C ports with a speed of 5Gb/s. This means the front I/O panel includes ports for rapid data transfer and connecting modern devices. The panel is completed by a combined 3.5mm audio jack for headphones and a microphone. The internal space accommodates powerful hardware. It supports the installation of CPU air coolers up to 180mm in height and ATX power supplies up to 200mm in length. Special attention is given to graphics cards, for which two air intake channels are provided. The case can house graphics cards up to 360mm long, which includes large cards with massive cooling systems.
Motherboard formats
- ATX
- mATX (Micro ATX)
- mITX (Mini ITX)
- eATX (Extended ATX)
Fans
- Front fan size: 3×120mm
- Top fan size: 3×120mm
- Bottom fan size: 3×120mm
- Rear fan size: 1×120mm
Ports
- USB 3.2 Gen 2x2, Type-C
- Combined 3.5mm jack
Specifications
Usage and size
Colour
Internal structure
External structure
PSU
Cooling system
Backlight
Material
Specifications can be changed without notice. Images are for illustrative purposes only.
