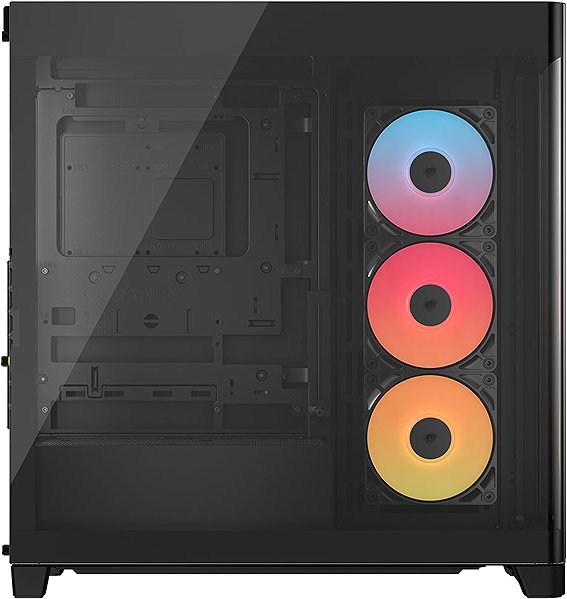

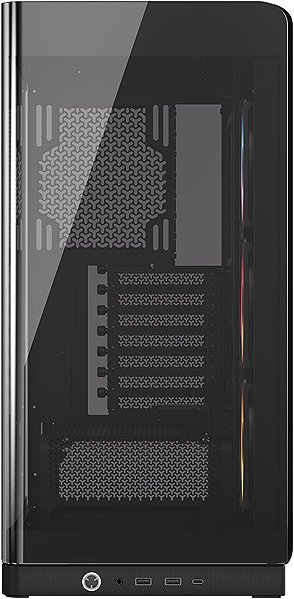

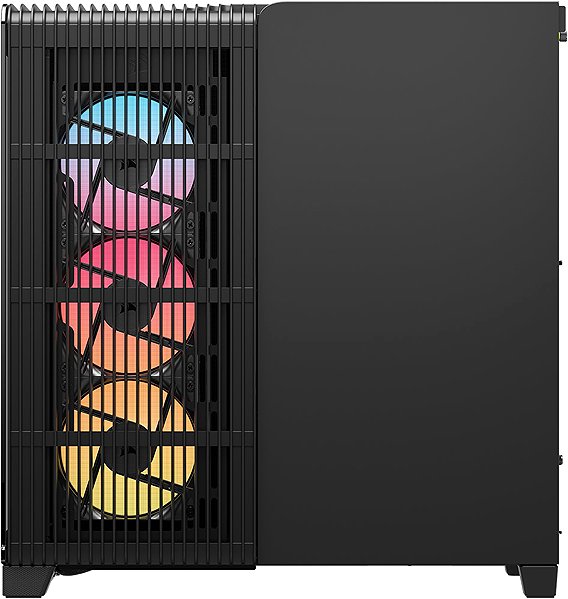

CORSAIR FRAME 4500X RSR ARGB Panoramic Glass Black
The Corsair Frame 4500X with RSR ARGB Panoramic Glass PC case serves as the foundation for building high-performance and stylish gaming rigs. This Midi Tower design combines a steel frame with a panoramic view of the interior and offers extensive options for installing cooling systems. It supports ATX, mATX, mITX and eATX motherboards, covering a wide spectrum of builds from compact to expansive. The case is supplied without a power supply, giving you the freedom to choose components according to your specific performance requirements.
Midi Tower
Case size
185mm
Max. CPU cooler height
460mm
Maximum graphics card length
3×
Number of included fans
10×
Total number of fan positions
Key features of the Corsair Frame 4500X with RSR ARGB Panoramic Glass PC case, black
- Three pre-installed RS-R ARGB reverse rotor fans facilitate air intake
- Supports motherboards with rear-facing connectors (ASUS BTF, MSI Project Zero)
- INFINIRAIL™ mounting system simplifies top fan installation
- Front panel is equipped with a USB-C port and two USB 3.2 Gen 1 ports
- Includes a stabilising arm to prevent graphics card sag
- Accommodates long graphics cards and tall CPU coolers
Construction and materials
The case is built on a solid steel chassis, complemented by a tempered glass side panel. This glass forms a single piece that wraps seamlessly around the front and side, creating an uninterrupted panoramic view of the installed components. A laminated film covers the glass panel for added safety and noise reduction.
Flexible cooling system and RGB lighting
The interior layout is designed for efficient heat dissipation. The case holds up to ten 120mm fans and offers versatile options for mounting liquid cooling radiators. You can fit up to two 360mm radiators simultaneously, one at the top and one on the side. It also supports 280mm, 240mm, 140mm and 120mm radiators in the top, side and rear positions. The fans are RS-R ARGB models with reverse rotor technology. This solution is key for side intake, as it draws in air while keeping the visible side of the fan on display. PWM control offers precise speed regulation, balancing cooling performance with quiet operation. The addressable RGB lighting can be synchronised with compatible motherboards.
Optimised airflow
The case's design promotes a direct airflow path for effective temperature management. Perforated steel panels on the top and side facilitate unrestricted air exchange. The included side fans draw in cool ambient air and direct it across the main components, from where it is then exhausted through the top and rear positions. This effectively prevents heat from building up inside the system.
Internal layout and compatibility
The interior supports a wide range of motherboard form factors, from Mini-ITX to Extended ATX (up to 305×277mm). For storage, there are bays for two 2.5" SSDs and one 3.5" HDD. The ATX power supply is installed at the bottom, hidden by a separate shroud. This separation not only creates a cleaner look but also isolates heat from the power supply away from the main chamber. The case provides ample space for large components. You can install CPU coolers up to 185mm high and graphics cards up to 460mm long. It also includes a stabilising arm for the graphics card to prevent it from sagging. The case allows for vertical mounting of the graphics card.
Front panel connectivity and cable management
The front I/O panel offers easy access to essential connectors. It includes a high-speed USB 3.2 Gen 2 Type-C port for fast data transfers, along with two USB 3.2 Gen 1 Type-A ports. These are complemented by a combined 3.5mm audio jack for headsets with both a microphone and headphones. This placement simplifies connecting external drives and gaming peripherals. A 37mm space behind the motherboard facilitates cable management. The PC case is fully compatible with motherboards featuring rear-facing connectors, such as ASUS BTF and MSI Project Zero. This approach leads to an exceptionally clean main chamber with no visible cables. For traditional builds, the case offers numerous grommets and tie-down points for organised routing.
Motherboard form factors
- ATX
- mATX (Micro ATX)
- mITX (Mini ITX)
- eATX (Extended ATX)
Fans
- Top fan size: 2×140mm, 3×120mm
- Rear fan size: 1×120mm, 1×140mm
- Bottom fan size: 3×120mm
- Side fan size: 2×140mm, 3×120mm
Ports
- USB 3.2 Gen 1, Type A
- USB 3.2 Gen 2x2, Type C
- 3.5mm jack (headphones)
- 3.5mm jack (microphone)
Specifications
Usage and size
Colour
Internal structure
External structure
PSU
Cooling system
Backlight
Material
Specifications can be changed without notice. Images are for illustrative purposes only.
