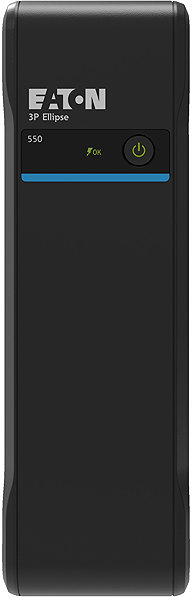

Eaton UPS 3P Ellipse 550 IEC
Eaton UPS 3P Ellipse 550 IEC
The Eaton UPS 3P Ellipse 550 IEC backup power supply with off-line topology is designed to protect the power supply of sensitive electronics in homes and small offices. It offers an apparent power of 550VA and a real power of 330W with an output power factor of 0.6. Thanks to its high efficiency of 97% at full load, it reduces energy loss and lowers operating costs. The backup time at half load is up to 7 minutes, which provides enough time to save your work and safely shut down systems during a longer power outage. At full load, it keeps devices running for 1 minute. The compact Tower design, measuring 263 × 81 × 235mm, makes it easy to integrate into any workspace.
Key features of the Eaton UPS 3P Ellipse 550 IEC backup power supply
- Achieves a high efficiency of 97% at full load
- Provides a backup time of up to 7 minutes at half load and 1 minute at full load
- Offers four IEC C13 output sockets, three of which provide both backup and surge protection
- Integrated surge protection guards devices against voltage spikes
- Includes an automatic battery test, deep-discharge protection and a cold start function
- A clear LED display shows the unit's status
- Contains a replaceable 12V / 4.5Ah lead-acid battery
- The C14 connector provides the input connection and supports Type E sockets
Performance and efficiency
This UPS operates with off-line technology, which powers devices directly from the mains during normal operation and switches to battery power upon detecting an anomaly. This protects connected electronics from power outages, undervoltage and overvoltage. The input voltage is 230V by default, but it can be set in the range of 220V to 240V, with the unit supporting an input voltage from 184V to 264V, with an option to extend it to 161V to 284V. The high operating efficiency of 97% at full load reduces electricity consumption. Both input and output frequencies operate in the 50–60Hz range.
Battery management and protection
The off-line topology and integrated surge protection shield connected devices from power outages and voltage spikes. Battery management on the Eaton UPS 3P Ellipse 550 IEC includes an automatic test, deep-discharge protection and a cold start function, which lets you start the UPS even without mains power. A clear LED display shows the unit's status. The battery inside is user-replaceable, which simplifies maintenance and extends the device's lifespan.
Operating features and design
The backup power supply operates in off-line mode and its operating noise does not exceed 25dB at a distance of one metre, contributing to a quiet working environment. The compact Tower design makes it easy to place on or next to a desk. The device weighs 3kg. The operating conditions are set for a temperature range of 0°C to 40°C and relative humidity from 0 to 95% without condensation, confirming its reliability in typical office conditions.
Connectivity options
The unit offers four IEC C13 output sockets for connecting appliances. Three of these sockets provide both battery backup and surge protection, while the fourth socket serves as surge protection for less critical devices, such as printers. Two IEC Jumper sockets are also available for powering additional peripherals. The standard C14 connector provides the input connection. This UPS is compatible with Type E sockets.
Technical specification
- Frequency bands: 46–70Hz
- Ports: 4× C13 output port, 1× C14 input port
- Security: Surge protection, replaceable batteries, automatic battery test, deep-discharge protection, cold start
- Power supply type: Off-line
- Operating temperature: 0–40°C
Specifications
Performance
Efficiency
Backup time
Power outlet type
Output type
Features
Dimensions
Weight
Eaton Industries (France) SAS, 110 Rue Blaise Pascal - 38330 Montbonnot Saint-Martin - France, [email protected]
Specifications can be changed without notice. Images are for illustrative purposes only.
