Caterpillar Drill Hammer 32mm, 1500W DX27
CAT DX27 combi hammer drill
A powerful hammer drill for both drilling and chiselling
The CAT DX27 combi hammer drill offers 1500W of power and an impact energy of 5J, making it suitable for more demanding drilling and chiselling jobs. The SDS-plus quick-change system allows for easy tool changes, and four working modes provide a wide range of applications when working with wood, metal and masonry.
Key features of the CAT DX27 combi hammer drill, 5J, 1500W
- SDS-plus chuck for quick, tool-free changes of drill bits and chisels
- 1500W of power and 5J of impact energy provide plenty of force for drilling and chiselling
- Magnesium alloy gearbox contributes to greater durability and effective cooling of the gear system
- Four working modes expand the range of applications for both drilling and chiselling
- Anti-vibration handle helps reduce vibration transfer during prolonged work
- The CAT DX27 has a soft, rubberised handle for increased comfort and a secure grip
- Variable speed control lets you adapt the power to the specific material
- Ball joint for full protection of the power cable

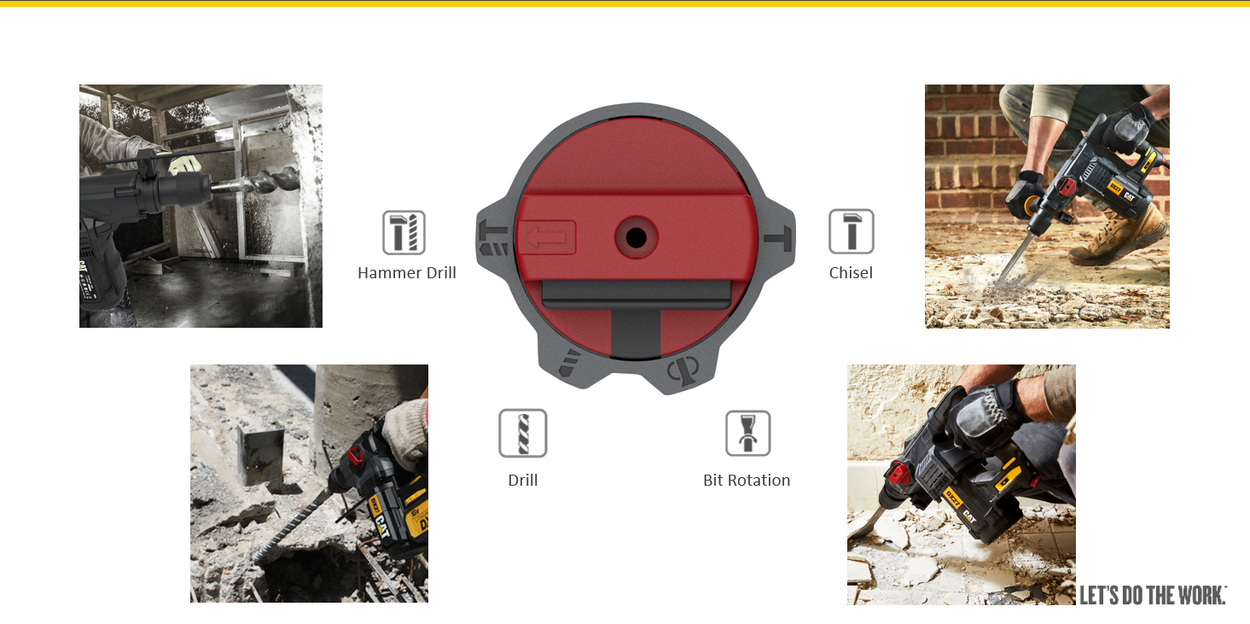

Four hammer drill modes for a wide range of uses
The CAT DX27 combi hammer drill offers four working modes that let you adapt the tool to different types of work.
- Hammer drilling
- Drilling without hammer action
- Chisel rotation (Vario-Lock)
- Chiselling

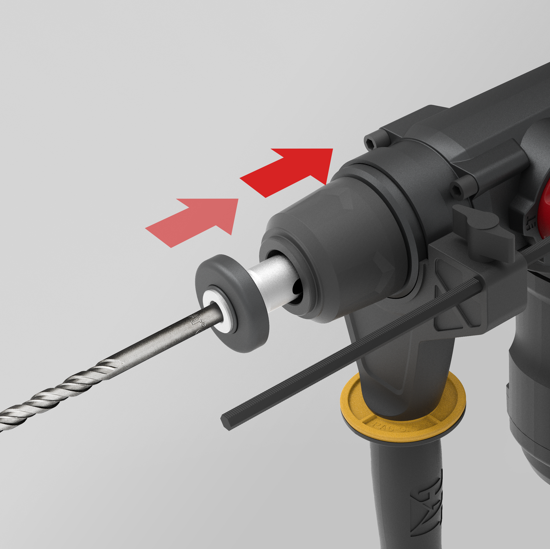

SDS-plus system for quick tool changes
The CAT DX27 combi hammer drill is equipped with an SDS-plus quick-change system that makes it easy to change drill bits and chisels. It also features variable speed control, which lets you better adapt the power to the specific material and type of work.
Comfortable design of the CAT DX27 drill for convenient work
The CAT DX27 is equipped with an anti-vibration handle that helps reduce vibration transfer and increases comfort during work. The rubberised handle surface ensures a firm and secure grip, while the power cable's ball joint prevents it from breaking and contributes to a longer service life.
Technical specification
- Power: 1500W
- Rated voltage: 220–240V, 50/60Hz
- No-load speed: 0–920rpm
- Impact rate: 0–3700bpm
- Maximum cutting capacity: wood 40mm, masonry 32mm, metal 13mm
Package contents
- CAT DX27 combi hammer drill
- Auxiliary handle
- Depth stop
- Dust cover
Specifications
Type
Features and functions
Packaging
Dimensions and weight
POSITEC Germany GmbH, Schanzenstr. 22, Köln - Germany, +49 2211306560
Specifications can be changed without notice. Images are for illustrative purposes only.
