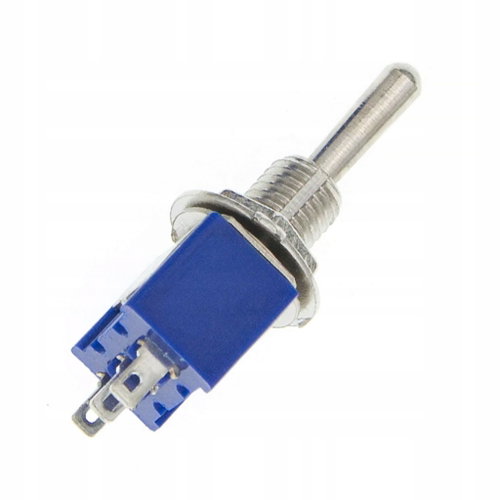

Rosfix Switch MTS-103 ON-OFF-ON
Rosfix Switch MTS-103 ON-OFF-ON
204,-
In stock > 10 pcs at the supplier's
Buy
Rosfix Switch MTS-103 ON-OFF-ON
Key features of the Rosfix MTS-103 ON-OFF-ON switch
- The MTS-103 lever switch is suitable for industrial, automotive or electronic applications
- Ideal for any project requiring a durable and reliable switching element
- The MTS-103 switch can be used for home and industrial applications
- The device has three contacts and offers 3 switching positions (ON-OFF-ON)
- The maximum contact load is 3 A at 250 V or 6 A at 125 V
- Low contact resistance (maximum 20 mΩ) minimizes energy loss
- Lifetime up to 10 000 switching cycles
- Adapted for soldering wires
Technical specifications:
Contact load: 3 AND 250 V / 6 AND 125 V
Contact resistance: Max. 20 mΩ
Insulation resistance: 100 MΩ at 500 VDC
Insulation strength: 1500 VAC / 1 minute
Operating temperature: -25 to 85 °C
Number of pins: 3
Assembly: For soldering wires
Specifications
Usage
Material
Rated voltage
Number of conductors
Height
Type
Usage
Material
Material
Features
Rated voltage
Number of conductors
Dimensions
Height
Width
Depth
Colour
Colour
More Specifications
