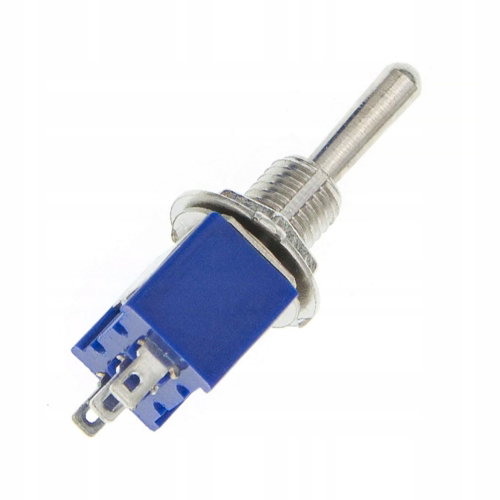

Rosfix Switch/switch MTS-102 ON-ON - Switching Relay - Main image
Switching Relay
Show full description
  204,-
without VAT 168,-
Compare
Watch Price/Availability
Add to list
Warranty 24 months Code:  ROSele0005
Rosfix Switch/switch MTS-102 ON-ON 204,- In stock > 10 pcs at the supplier's
Buy

Rosfix Switch/switch MTS-102 ON-ON

Rosfix MTS-102 ON-ON switch

Key features of the Rosfix MTS-102 ON-ON switch

  • The MTS-102 lever switch is suitable for industrial, automotive or electronic applications
  • Ideal for any project requiring a durable and reliable switching element
  • The MTS-102 switch can be used for home and industrial applications
  • The device has three contacts and offers 2 switching positions (ON-ON)
  • Maximum contact load is 3A at 250V and 6A at 125V
  • Low contact resistance (maximum 20 mΩ) minimizes energy loss
  • Lifetime up to 10 000 switching cycles
  • Adapted for soldering wires

Technical specifications:
Contact load: 3 AND 250 V / 6 AND 125 V
Contact resistance: Max. 20 mΩ
Insulation resistance: 100 MΩ at 500 VDC
Insulation strength: 1500 VAC / 1 minute
Operating temperature: -25 to 85 °C
Number of pins: 3
Assembly: For soldering wires

Specifications

Usage
Screwless
Material
Plastic, Stainless steel
Rated voltage
250 V
Number of conductors
3
Height
33 mm

Type

Usage
Screwless

Material

Material
Plastic, Stainless steel

Features

Rated voltage
250 V
Number of conductors
3

Dimensions

Height
33 mm
Width
13 mm
Depth
8 mm

Colour

Colour
Blue
More Specifications

ROSFIX HUBERT GRZYBEK, (+48) 796 388 770, [email protected], Ul. Zakopiańska 86G/5, 34-700 Rabka-Zdrój, Polska

Note:

Specifications can be changed without notice. Images are for illustrative purposes only.
