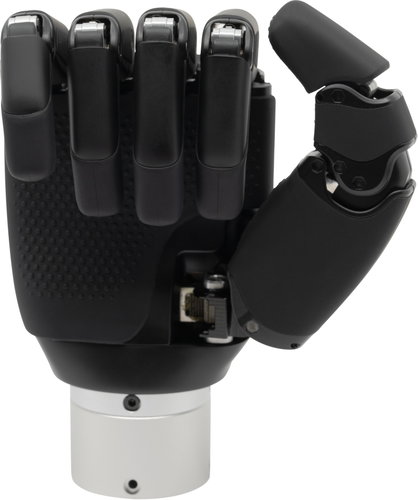

Benefits of Pre-Orders:Inspire G1 RH56E2 (U6) is a dexterous robotic hand designed for advanced manipulation in humanoid applications and research. It offers 6 degrees of freedom (12 joints) and is designed to handle both gentle grasping of smaller objects and fast, repeatable movements for technical tasks. With a grip force resolution of 0.50 N, you can accurately dispense pressure on contact with an object, and with a repeatability of ±0.20 mm, it is also suitable for scenarios where precise repetition of finger trajectory is required.
The Dex 5 hand allows precise grip dosing thanks to a 0.50 N resolution. In practice, this means better control when working with smaller parts, plastics, cables or components where you need to "push just right" - without unnecessary slippage and without damaging the object.
With a repeatability of ±0.20 mm, the Dex 5 is suitable for tasks that require stable results: Repeated grasping at nearly identical points, manipulation in jigs, demonstrations for learning robotic skills or testing grip control algorithms.
The thumb has a lateral rotation of more than 65°, so the hand can better change the grip type according to the shape of the object - from a precise "pinch" grip to a more secure grip. To this he adds brisk movements: Lateral thumb movement of 235°/s and flexion of 150°/s, which helps with quick corrections during manipulation.
The four fingers reach flexion speeds of up to 570°/s, so the hand responds nimbly even in situations where the object is moving, changing position or needing to quickly switch between grip and release. This is useful, for example, for reloading, sorting or short handling cycles.
The combination of 6 DOF and 12 joints gives the hand the dexterity needed for variable grips and working in confined spaces. This makes Dex 5 usable as a research "end effector" for humanoid scenarios where hand coordination, finger trajectories and grip stability are addressed.
Specifications can be changed without notice. Images are for illustrative purposes only.
