Inter-Tech IPC 1U-10255 - Rack 1U
The Inter-Tech IPC 1U-10255 rack chassis, with a height of 1U, forms the foundation for servers in data centres where efficient use of space is critical. This computer case accommodates motherboards from compact Mini ITX through standard ATX to the SSI-CEB server format, enabling the construction of versatile builds. The internal layout supports graphics cards up to 270mm in length and CPU coolers up to 32mm in height. A solid steel casing with a material thickness of 1.0 to 1.2mm protects the hardware from damage. The package includes a set of five 40mm fans for active cooling and a universal I/O shield.
Server cases
Case size
32mm
Max. CPU cooler height
270mm
Maximum graphics card length
5×
Number of fitted fans
5×
Total number of fan positions
Key features of the Inter-Tech IPC 1U-10255 Rack 1U computer case
- Motherboard support includes Mini ITX, mATX, ATX and the SSI-CEB server standard
- Solid construction uses thick-gauge steel
- Five fans ensure active airflow throughout the interior
- Internal layout accommodates up to nine smaller drives or three standard hard drives
- Front panel features USB connectors
- Maximum CPU cooler height matches the case's low profile
- Riser card slot expands installation options for add-on cards
Durable steel construction
The sturdy chassis is made of steel sheets that resist mechanical stress in demanding server environments. With a standardised height of 44.5mm and a depth of 578mm, the case fits into standard data racks. The internal space accommodates a CPU cooler with a maximum height of 32mm and a graphics card up to 270mm long, while the use of a riser card further expands the installation options for add-on cards.
Cooling the Inter-Tech IPC 1U-10255 server

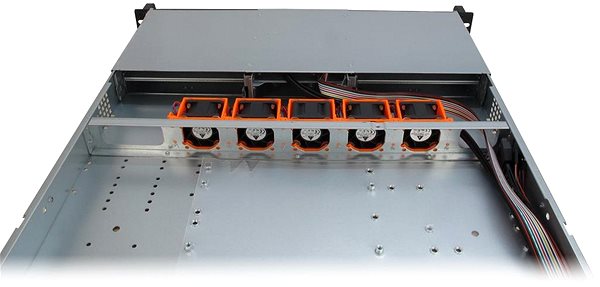

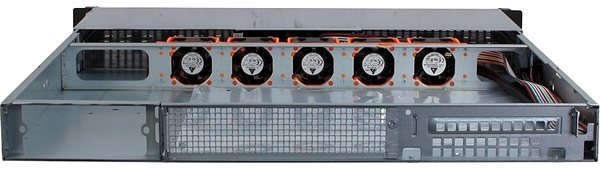

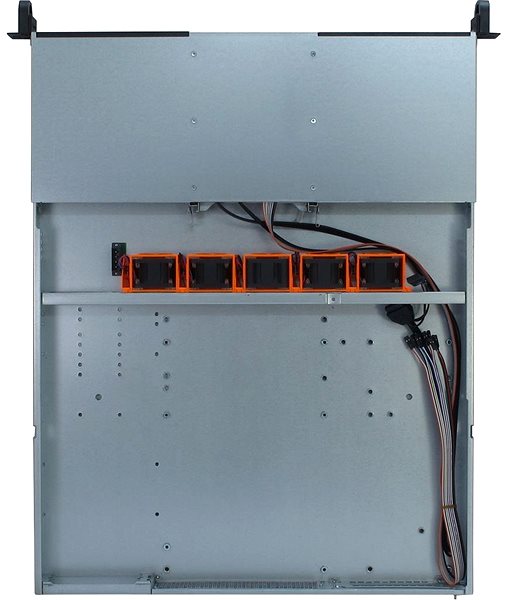

Efficient heat dissipation is provided by five pre-installed 40mm fans located in the partition behind the drive bays. These fans create a strong airflow across key components, keeping temperatures at a safe level even under sustained system load. The fans are powered via standard Molex connectors, which simplifies connection to the power supply and cable management inside the narrow profile of the case.
Storage and connectivity
The versatile drive mounting system offers positions for nine 2.5" drives or three 3.5" hard drives, or a combination of both depending on current needs. The front panel includes USB 3.0 and USB 2.0 ports for quick data access or connecting peripherals from outside the rack. Clear LED indicators on the front show the power status, hard drive activity, and network traffic.
Motherboard formats
- Mini ITX
- mATX
- ATX
- SSI-CEB
Fans
- Internal fan size: 5×40mm
Ports
- USB 3.0
- USB 2.0
Specifications
Colour and design
Outputs
Usage and size
Colour
Internal structure
External structure
Cooling system
Use
