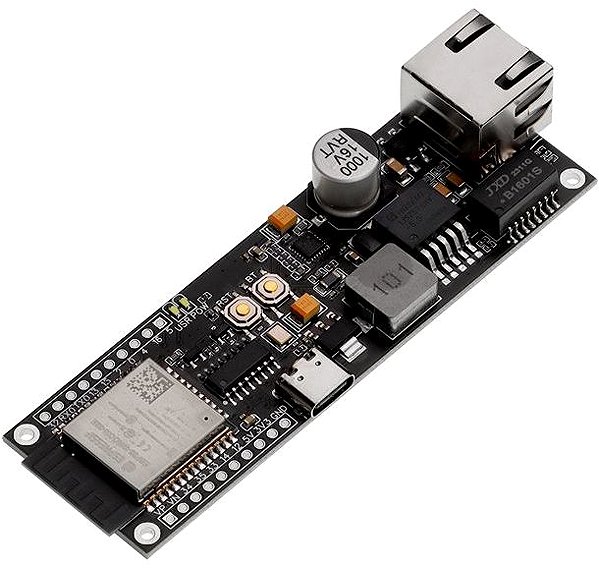

Prokyber Development board ESP32-STICK passive POE
Prokyber Development board ESP32-STICK passive POE
The Prokyber ESP32-STICK Passive POE development board is an open-source, CE-certified development board built on the powerful ESP32 platform. This ESP32 microcontroller combines native support for WiFi and Bluetooth, but this board expands its connectivity with a stable wired connection. By integrating Ethernet and supporting passive PoE, it offers a reliable solution for IoT projects, home automation systems, and industrial applications where continuous power and data connectivity are required. This passive PoE board with ESP32 and LAN eliminates the need for a separate power supply at the installation site.
ESP32-WROOM
Processor model
No drive
SSD capacity
No OS
Operating system
5V
Power supply
Key features of the Prokyber ESP32-STICK passive POE development board mini PC
- Based on the ESP32-WROOM platform
- The board supports passive PoE power
- Integrated Ethernet chip is LAN8720A
- The output supplies power to peripherals
- Programming is done via USB-C with a CH340G converter
- Connectivity includes LAN, WiFi and Bluetooth
- The product is CE certified as an open-source board
Programming the mini PC
Developers can program in established environments like Esp-IDF, Arduino IDE, Micropython, or ESPHome. The integrated CH340G USB-UART converter eliminates the need for an external programmer and offers plug-and-play programming via the USB-C connector. Code you create for one board is compatible with others in the Esp32-Stick family, thanks to the identical processor and pin layout.
Hardware and design

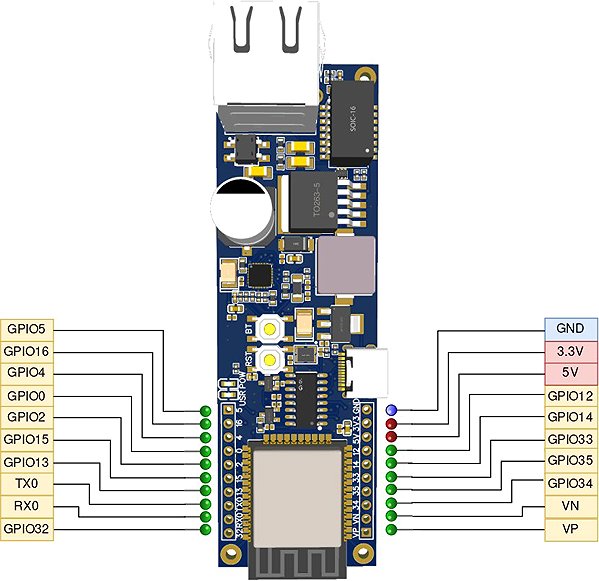

The board is based on the proven ESP32-WROOM module with a dual-core processor and enough memory to run complex applications. It provides 17 free GPIO pins for connecting sensors, displays, and other peripherals. The board also includes a user LED connected to GPIO2 for visual status indication and a button. Maintaining identical dimensions across the product family makes it easily interchangeable with other Esp32-Stick boards. This simplifies the design process, upgrades, and any potential board replacement in an existing project without requiring mechanical modifications.
Connectors
- USB Type-C
Specifications
Features

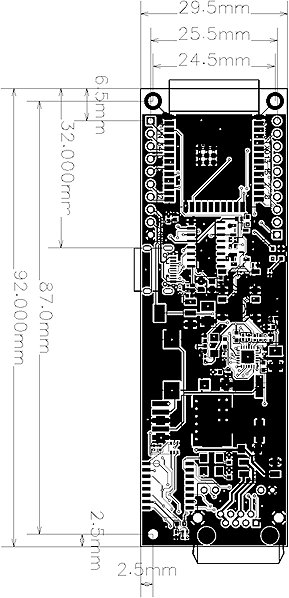

Dimensions
