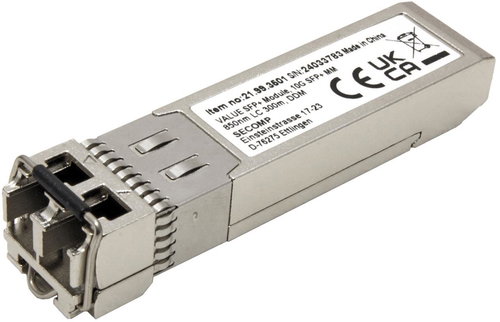

Value SFP+ 10 GBase-SR, 2 × LC, multi mode, 850 nm, DDM, 300 m
Value SFP+ 10 GBase-SR, 2 × LC, multi mode, 850 nm, DDM, 300 m
The VALUE SFP+ module provides reliable network connectivity within 10 Gigabit Ethernet networks. This transceiver is designed to transmit data over optical fiber and is used to efficiently connect network elements such as switches or servers that require high throughput and signal stability.
Key Features of the Value SFP+ 10GBase-SR Module
- SFP+ transceiver module for 10 Gigabit Ethernet networks
- Support for 10GBase-SR standard with 10 Gb/s transfer rate
- Designed for Multi Mode optical fibers with 850 nm wavelength
- Maximum transmission range of 300 metres using OM3 cabling
- Interface with LC connectors and hot-swappable function
- Digital diagnostics DDM
10GBase-SR transmission over multimode fiber
The unit supports the 10GBase-SR standard with a transfer rate of 10 Gbps. It operates at a wavelength of 850 nm and is optimized for Multi Mode optical fibers. When using OM3 type cabling or higher it achieves a maximum transmission distance of 300 meters. The integrated DDM (Digital Diagnostic Monitoring Interface) function allows network administrators to monitor operational parameters in real time.
LC connectors and hot-swappable design
It is equipped with an interface with LC connectors. The hot-swappable design allows you to install or replace the module on the fly without shutting down the entire device, making network maintenance easier. The transceiver is fully functional in the temperature range from 0 °C to 70 °C.
Module type:SFP+ (Mini-GBIC)
Standard: 10GBase-SR
Conector: 2× LC
Type of thread: Multi Mode
Dosah: 300 m
Specifications
Features
Supported standards
Type and number of connectors
Wavelength
Dimensions and weight
Package contents
