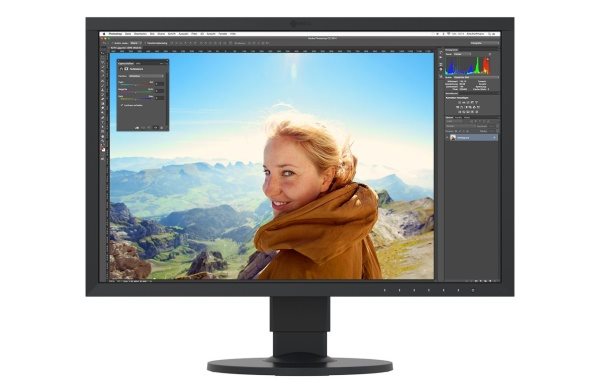

The EIZO CS2420 is a professional ColorEdge Photo Monitor. Its backlighting system is a colour LED system with a colour range capable of covering up to 99% of the AdobeRGB colour standard (1998) and even 100% coverage of the ISO standard sRGB IEC61966-2.1 or ISO couted ISO space. The monitor can detect up to 1 billion colour shades on its 10-bit LCD panel. The EIZO ColorNavigator 6.x calibration software can be used to calibrate the monitor, which supports a range of external calibration probes.
Off
Not filled Alternative text to the photo!
Key features
LCD panel with wide colour range and backlighting with LED technology
The colour range covers 99% of the AdobeRGB space
Accurate hardware calibration of brightness, white point and image gradation (tonal gamma curves)
Digital Uniformity Equalizer for excellent brightness distribution and colour uniformity
Precise colour display with 16-bit Look-Up-Table (LUT) and up to 10-bit colour depth
Inputs- Display Port, DVI-D and HDMI
ColorNavigator calibration software included
No Glittering Effect
The matte surface of the screen is provided with an additional layer that prevents "glitter" on monochrome surfaces (white, green, red, etc.). The image thus produces a perfectly pure and clear impression - much like the reproduction of the image obtained by the reflection of light from paper.
Up to 99% coverage of the AdobeRGB colour standard
Up to 99% AdobeRGB coverage ensures that RAW camera data is converted to the RGB colour space according to AdobeRGB. In addition, the widecolour range covers the entire ISO-coated and US-coated standard used in colour reproduction of CMYK print data, enabling accurate print simulation of modern, wide-format inkjet printers.
Off
Not filled Alternative text to the photo!
Supports 30 bit transmission of photo data
Photo Raw formats typically work with 14 bit precision, and after converting them to 16 bit RGB TIFF, PNG and other RGB formats, they can then be further edited into a 10 bit (3 × 10 bit RGB) format and sent via a graphics card to the input Monitor. If the monitor can process data with 10 bit color depth, it can display very smooth transitions even in the case of high colour photographic data. The monitor supports 8/10 bit depth data on its DisplayPort 1.1a input and 8/10/12 bit depth data on its HDMI 1.3b input, displaying up to 68 billion colour tones and transitions with very close fitting shades.
Three basic modes of working with the monitor
Off
Not filled Alternative text to the photo!

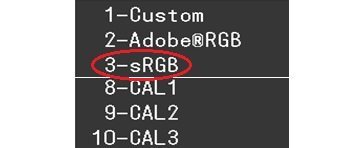

Basic = sRGB mode
Manual adjustment without calibration probe.
Off
Not filled Alternative text to the photo!

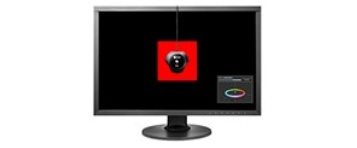

Advanced = wide-angle mode
Adjustment using external calibration probe and ColorNavigator 6.
Off
Not filled Alternative text to the photo!

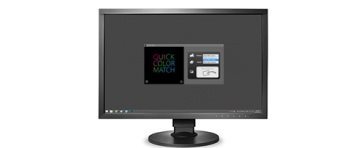

QCM mode
To match your home printer.
Off
Not filled Alternative text to the photo!

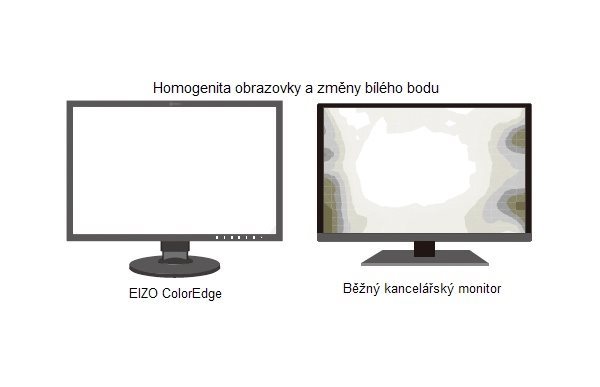

DUE - Digital Uniformity Equalizer
Brightness and chromaticity deviations of individual pixels cause so-called "inhomogeneity" of the image, which also varies according to the ambient temperature and the brightness and white point of the monitor. As a result, there are different colour renderings of the image displayed on different parts of the screen. This problem is solved by patented electronicbrightness and colour correction technology of each pixel that optimises the brightness and white point of the monitor.
Excellent response and sharpness
Users who would like to use this model also for video processing will be surprised by the very fast response - 15 ms (G-G).
I/P conversion
The HDMI input supports automatic conversion of the input interlaced signal to a non-interlaced (progressive) signal that ensures a stable and non-blinking image.
Easy connection
Seamless connectivity to modern computers is provided by DisplayPort, HDMI, or conventional DVI-D inputs. There is also the USB 3.0 interface.
Light help
For less well illuminated rooms, the monitor has a light function feature above the individual control buttons.

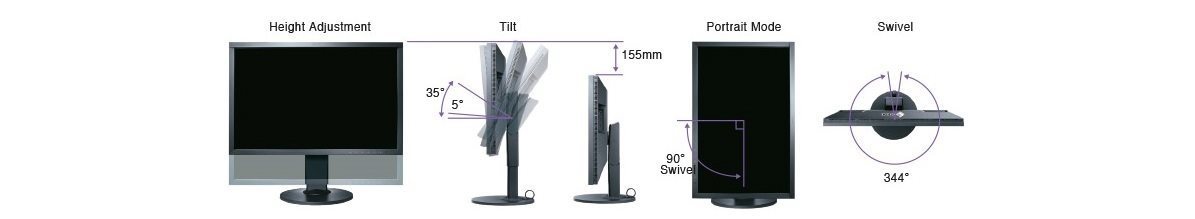

New flexible stand
With a new stand, it is possible to easily manipulate the 24" panel in every situation and for each user. The stand supports height adjustment of 155mm, 344° shooting, tilt up to 30° and finally 90° rotation - Turn the panel to the "portrait" position (pivot function) to conveniently view "long" web pages.
Off
Not filled Alternative text to the photo!

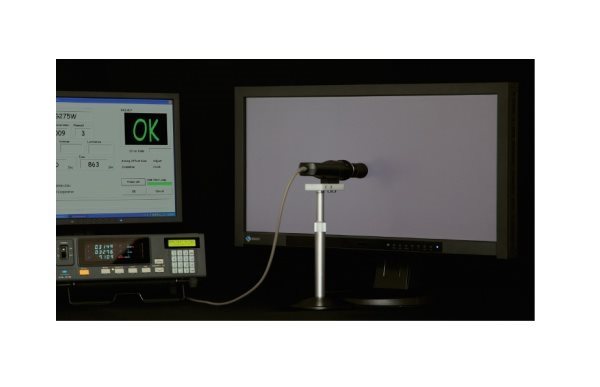

Individual calibration of each monitor
Each single piece of the ColorEdge (CS / CX and CG) model series is individually calibrated using accurate calibration probes before leaving the EIZO production line. This guarantees minimum manufacturing deviations between the individual pieces produced and therefore easy to use the "generic" (factory-averaged) colour profiles of the individual models.
Off
Not filled Alternative text to the photo!
Off
Not filled Alternative text to the photo!
Zero tolerance of bad pixels
EIZO guarantees zero tolerance for defective pixels or sub pixels. When defective pixels/ subpixels are detected within six months of the date of sale, the user has the right to request a replacement or a significant discount on the purchased monitor.
Thanks to the high quality of all the components used in the monitor production, the manufacturer provides a 5 year warranty for this model, including the LCD panel warranty and backlighting system.
Additional information:
Screen: Surface: semi-matt layer with zero glitter and hardened surface 3H Point size: 0.270mm Both responses: 15ms (GG) Contrast (static): 1000:1 Viewing angles (horizontally / vertically): 178° / 178° Recommended brightness: 120cd/m2 Colour Range: 100% coverage of sRGB IEC61966-2.1 and ISO-coated/ US Web-coated and 99% AdobeRGB Coverage (1998) Number of colours: 1 billion (DP 1.1a-10-bit or HDMI 1.3b), 16.7 million (DVI-D input) Gamma Correction: 16-bit LUT Preset Modes (7): Custom, Paper, sRGB, AdobeRGB, Calibration, CAL1, CAL2, and CAL3
Special Features & Special Features: "Paper" mode = simulation of "reader" device DUE - Digital Uniformity Equalizer (homogeneity independent of set-point and white point) Thermal drift compensation HDMI input with automatic I/P conversion for interlaced video signals HDMI input ver. 1.3bs with 10bit support. Video signal I/P-Conversion - Automatic interleaved conversion to non-interlaced (HDMI input) License for Professional ColorNavigator 6.x and ColorNavigator NX Calibration Software
Connectors: 1 x DisplayPort 1.1a - 8/ 10bit with HDCP encoded video 1 × DVI-D with HDCP encoded video 1 × HDMI 1.3b - 8/10/ 12bit with HDCP encoded video signal support and RGB/ YCbCr 1 x USB-control port + hub 2 × USB 3.0 + 1 × USB 3.0 (charger = rechargeable port)
Base: Tilting 35°, shooting 344° Rotate 90° (pivot) Height adjustment in 155mm range Support for VESA 100 × 100mm wall mount or ergonomic brackets
Design, dimensions, weight: Dimensions with rack: 554 × 396-551 × 245mm Dimensions without stand: 554 × 362 × 64mm Weight without stand: 5kg Weight including stand: 7.8kg Recommended ambient operating temperature: 0-35° C
Standard accessories: Cables: power cord, video cables: 1 × DVI-D / DVI-D, 1 × MiniDP / DP, 1 × USB CD: EIZO Utility Disk (PDF-User Manual, ScreenManager Pro (USB)
Denotes the distance between the lower left and upper right corner of the screen. It is quoted in inches,while 1 "= 2.54 cm. How big a diagonal measurement to choose with which device and what are the benefitsand the disadvantages?
The monitor resolution type refers to the number of pixels that can be displayed on the monitor screen. Choosing the right resolution type can have a significant impact on the overall experience of using your monitor, whether it's for work, gaming or watching movies.
Monitor resolution refers to the number of pixels on the monitor screen, expressed as width × height. Higher resolutions provide a more detailed and clearer image, while lower resolutions may be suitable for smaller monitors or to save power.
Denotes the distance between the lower left and upper right corner of the screen. It is quoted in inches,while 1 "= 2.54 cm. How big a diagonal measurement to choose with which device and what are the benefitsand the disadvantages?
The monitor resolution type refers to the number of pixels that can be displayed on the monitor screen. Choosing the right resolution type can have a significant impact on the overall experience of using your monitor, whether it's for work, gaming or watching movies.
Monitor resolution refers to the number of pixels on the monitor screen, expressed as width × height. Higher resolutions provide a more detailed and clearer image, while lower resolutions may be suitable for smaller monitors or to save power.
The monitor connection type refers to the interface that is used to transmit the video signal from the source (e.g. computer) to the monitor. Different connection types support different resolutions and refresh rates and can affect the quality and performance of the display on the monitor.
Dobry den,
tento monitor nema reproduktory.
Kdyz do nej poslu signal po HDMI kde zvuk je mohu k monitoru na jeho USB port pripojit repruduktory ktere maji USB vstup?
Jake by jste doporucili?
Dekuji
Jan
Dobry den,
tento monitor nema reproduktory.
Kdyz do nej poslu signal po HDMI kde zvuk je mohu k monitoru na jeho USB port pripojit repruduktory ktere maji USB vstup?
Jake by jste doporucili?
Dekuji
Jan
V popisu vám chybí dost důležitá věc pro grafický monitor - zobrazovaný barevný prostor. Dle údajů výrobce tento monitor pokrývá 99 % barevného prostoru AdobeRGB a 100 % prostoru sRGB. Údaj o zobrazovaném barevném prostoru by měl být ve výběrových kritériích pro filtrování produktů.
V popisu vám chybí dost důležitá věc pro grafický monitor - zobrazovaný barevný prostor. Dle údajů výrobce tento monitor pokrývá 99 % barevného prostoru AdobeRGB a 100 % prostoru sRGB. Údaj o zobrazovaném barevném prostoru by měl být ve výběrových kritériích pro filtrování produktů.
Dobry den,
Na tento monitor je zaruka 5 rokov? Z toho 2 roky u vas a nasledne zvysne 3 odo dna predaja u vyrobcu? Vas predavac mi pri prevzati monitora povedal, ze odporuca dokupit zaruku nakolko sa na monitor vztahuje iba rocna zaruka aj ked som fyzicka osoba :) Monitor som kupil tento vikend. Ako to teda naozaj je?
Dobry den,
Na tento monitor je zaruka 5 rokov? Z toho 2 roky u vas a nasledne zvysne 3 odo dna predaja u vyrobcu? Vas predavac mi pri prevzati monitora povedal, ze odporuca dokupit zaruku nakolko sa na monitor vztahuje iba rocna zaruka aj ked som fyzicka osoba :) Monitor som kupil tento vikend. Ako to teda naozaj je?
