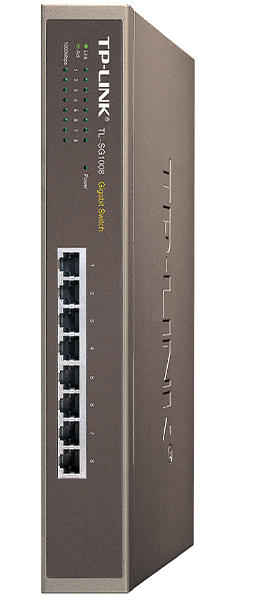

TP-LINK TL-SG1008

This high-quality 8-port gigabit switch from TP-LINK is the ideal way to quickly expand your home or small business network. All eight ports support Auto MDI/MDIX so you do not have to worry about which cable to connect. Thanks to the ability of the switch to turn off individual inactive ports, it uses up to 60% less power compared to competing devices in the same category and so saves the environment, and your wallet, when operating.

Fast Communication

The switch's ports are equipped with auto-negotiation and support Auto MDI/MDIX so you do not have to deal with cross-linked or uplink (Uplink) ports.With an unlocked switch architecture, the switch passes and filters packets at full cable speed to ensure maximum throughput. Together with the Jumbo 10K frame, there is also a significant increase in the transfer rate of large files.


Simple to Use

With automatic functions, setting up and running the router is very easy and there is no need for more complex knowledge to use its proper functionality. No complicated setup is required, just plug in the appropriate cables, and the switch automatically detects the cable type and the speed of other devices on the network then optimises the network for maximum efficiency.











High Performance

The switch is equipped with an unbundled architecture with full cable speed and 96Gbps switching capacity for maximum data throughput. Even the largest networks can be easily expanded with an 8000 MAC address table and IEEE 802.3x flow control for full duplex mode, and Backpressure for half-duplex mode reducing network obstruction and ensuring reliable data transfer.



Technical Parameters and Specifications:

Supported Protocols:
IEEE802.3, 802.3u, 802.3ab, 802.3x
Access method used: CSMA/CD
Network architecture: TCP/IP

Basic Functions:
Wire-speed Power
Automatic learning of currently used MAC addresses
IEEE802.3x: Flow control support for Full-Duplex and Half-Duplex mode

Bandwidth:
16Gbps

MAC table size:
8000 positions

Number of Forward Packets per Second at each port:
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port

Method of Transmission:
Store-and-Forward

Ports:
Number of ports: 8 with 10/100/1000Mbps RJ45 support (with Auto MDI/MDIX support)

Supported Categories of Network Media:
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA / TIA-568 100U STP (max. 100m)
100Base-TX: UTP category 5, 5e cable (maximum 100m)
EIA / TIA-568 100U STP (max. 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)

LED Indicators:
Power supply
Connected ports and their activities
Recognition of used transfer rate: 10/100/1000Mbps

Security and Emissions:
FCC, CE

Dimensions:
250 x 158 x 44mm

Temperatures:
Operating: 0 ~ 40°C
Storage: -40 ~ 70°C

Humidity:
Operating: 10 ~ 90%
Storage humidity: 5 ~ 90%

Power Supply:
Voltage: 100 to 240VAC
Frequency: 50/60Hz
